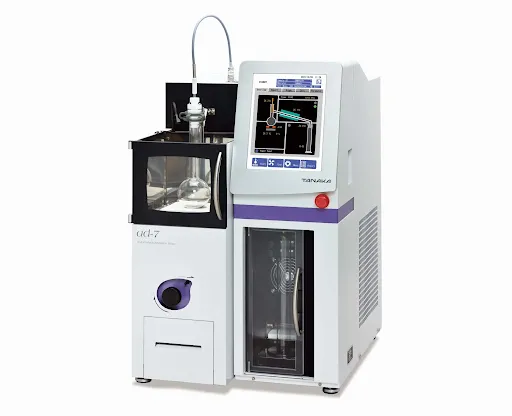

Automated Distillation Tester ad-7

"Ergonomic" , "Premium" and "Versatile
Methods:
GOST 2177, JIS K 0066, JIS K 2254, JIS K 2435-1, JIS K 2435-2, JIS K 2435-3, ASTM D86, ASTM D850, ASTM D1078, IP 123, ISO 918, ISO 3405,
















































								GOST 2177,

								JIS K 0066, JIS K 2254, JIS K 2435-1, JIS K 2435-2, JIS K 2435-3,







								ASTM D86, ASTM D850, ASTM D1078,













								IP 123,

								ISO 918, ISO 3405,









Practical design for the everyday user

Tanaka AD-7 automatically performs distillation test of petroleum products as narrow boiling range samples in full compliance with ASTM D86. This automatic distillation analyzer’s 10.4-inch LCD with touch panel has been adopted for easy and intuitive operation. Peltier system is employed for cooling/heating of the condenser and cylinder room. The AD-7 automatic distillation analyzer has a CFC free system with a small-footprint.

User-Friendly
10.4 inch (*) Color Screen.* 4 times larger than previous model.
Intuitive operation by Touch Panel.
Advanced data management software is included with the automatic distillation unit; tads (Tanaka Data Acquisition System)

Versatility
The AD-7 automatic distillation apparatus has 200 test modes
5,000 test results RS-232C,
RS-232C, USB port, Ethernet

Safety
Fire Containment system: Heater shuts down when ultraviolet senor detects a fire, and CO2 gas flows into the heater room (if connect to CO2 line).
Flask Catcher reduces the risk of breaking vapor tube of flask.
Overheat protection: Heater shuts down automatically at the upper end if the temperature scale.

features__astm compliantfeatures__simple operatonfeatures__footprintfeatures__touch screenfeatures__result managerSafety AlarmsAuto Shut-off

The following accessories are recommended for purchase in sequential order (see eStore):

1st Year:
Distillation Flask, 125ml
Distillation Flask, 200m
Printing Roll Paper W80xD48 for ad-7, AD-6, BS2, AFP-202 and FX (2rolls/pack)
Flask Support Board,φ38 Made of Petalite for ad-7
Flask Support Board,φ50 Made of Petalite for ad-7
Silicon Stopper for Condenser Tube Cap
Condenser Tube Cleaning Tool 89.0395 1 $34.00
Graduated Cylinder Assembly, 100ml for ad-7
Temperature Sensor for ad-7 (fuel oils), Glass Winding Type
Heater Temp Sensor Assembly, for ad-7
Flask Catcher with Centering Device for 125ml
PTFE Stopper 7mm Hole (with O-Ring)
Heater Spiral type, DC24V 600W for ad-7
Drop catcher for ad-7
2nd Year:
Same as 1st year
Remaining Parts:
Test Method Compliance   JIS K 2254, JIS K 0066, JIS K 5601, JIS K 5602, JIS K 5603, ASTM D86-12, ASTM D850, ASTM D1078, ISO 3405, ISO 918, IP 123, GOST 2217
Test ranges    Selectable from 0°C to 300/450°C (fuel oil) or 0° to 200/450°C (ASTM D850, D1078 with optional accessories)
Program control    Sequence control by microcomputer
Display    TFT-LCD 10.4″ Color Touch-Screen with universal design GUI
Printer   Built-in, Thermal type (Paper width: 80mm, Print width: 72mm
Barometric correction    Automatic correction by barometric pressure sensor or manually input
Temperature unit    0.1°C or 0.2°F
Temperature sensor    For Vapor: Pt 100
For Heater: Thermocouple
For Condenser: Pt100
For Receiver: Pt100
Heater    24V 600W Low Mass and Low Voltage Heater, Spiral Type
Heater cooling system    Forced air cooling ny propeller fan
Condenser    Brass tube (Standard) or Stainless (Option)
Condenser temperature control    Electronic cooling and heating by Peltier coolers: 0 – 69.9°C
Receiver temperature control   Electronic cooling and heating by Peltier coolers: 10-50°C
IBP detection    Photoelectric detection by infrared LED and phototransistor
Liquid level detection    Photoelectric detection by infrared LED and phototransistor.
Distillation rate: 4.5% min a factory (Selectable from 2 to 9% with 0.5% increment.
Control method: PID Control
Test mode   Up to 200 test modes can be recorded
Dry point detection    Manual to detection by visual confirmation Or automatic detection by Dry Point Sensor (Option, CRC thermocouple)
Safety features    (1) Overheat protection activates at the upper end of the temperature scale
>Heater shuts down. Reports by audible alarm and display
(2) Self-diagnosis for sensor break, test condition and incorrect operations
>Heater shuts down. Reports by audible alarm and display
(3) Warning device for fire
>Heater shuts down. Reports by audible alarm and display
CO2 gas flows into heater room connected to CO2 line.
Communication port    RS-232C x 1ch: For LIMS
Ethernet x 1ch: For tdas or LIMS
USB x 1ch: For Keyboard, Firmware update
Data storgae   Up to 5,000 test results can be stored
Power source    AC100V-240V 50/60 Hz 15 A
Weight    55 kg (121 lbs)
Dimensions   43x52x71 cm (16x20x27 inches)
Shipping weight
Dimension with crate

Brochure: ad-7 by Tanaka
