ERAVISC X
Advanced viscometer for precise viscosity measurement.
- High-precision viscosity analysis
- Rapid results with minimal sample volume
- Portable, automated and easy-to-use design for different temperatures
- Suitable for various fluids and applications
- Meets different standards
Key Features
ASTM
CompliantFully compliant to ASTM D445 and D7042
Multilingual AccessibilityMultilingual Accessibility: Operation and output capabilities in the following languages: English, Spanish, Portuguese, Russian, Chinese (coming soon), French (coming soon)
Streamlined OperationStreamlined Operation: An intuitive menu structure ensures seamless user navigation
Reliable Bubble DetectionPatented filling proof technology ensures air bubbles do not interfere with results in a simple pass/fail pretest
Integrated
OscillatorIntegrated Oscillator: A density cell is built into the unit to provide more well rounded fluid characteristic results
Wide
ParametersWide Parameters: The unit has an extensive temperature range from 15-100°C and a viscosity index (VI) testing option
Straightforward
CleaningStraightforward Cleaning: A simple solvent rinse and subsequent drying with the supplied air purge tube is typically all that is required to clean the device
Extensive
DatabaseExtensive Database: Over 100,000 test reports can be stored in the in-unit database
Fully
PortableFully Portable: An accessible design that is lightweight and has an integrated carrying handle allows for suitable and smooth mobility
Enhanced Output EfficiencyEnhanced Output Efficiency: Direct ethernet and LIMS connectivity and in unit result transfer to reports and email
Videos
ERAVISC X / Viscosity + density
Two measurements.
One compact analyzer.

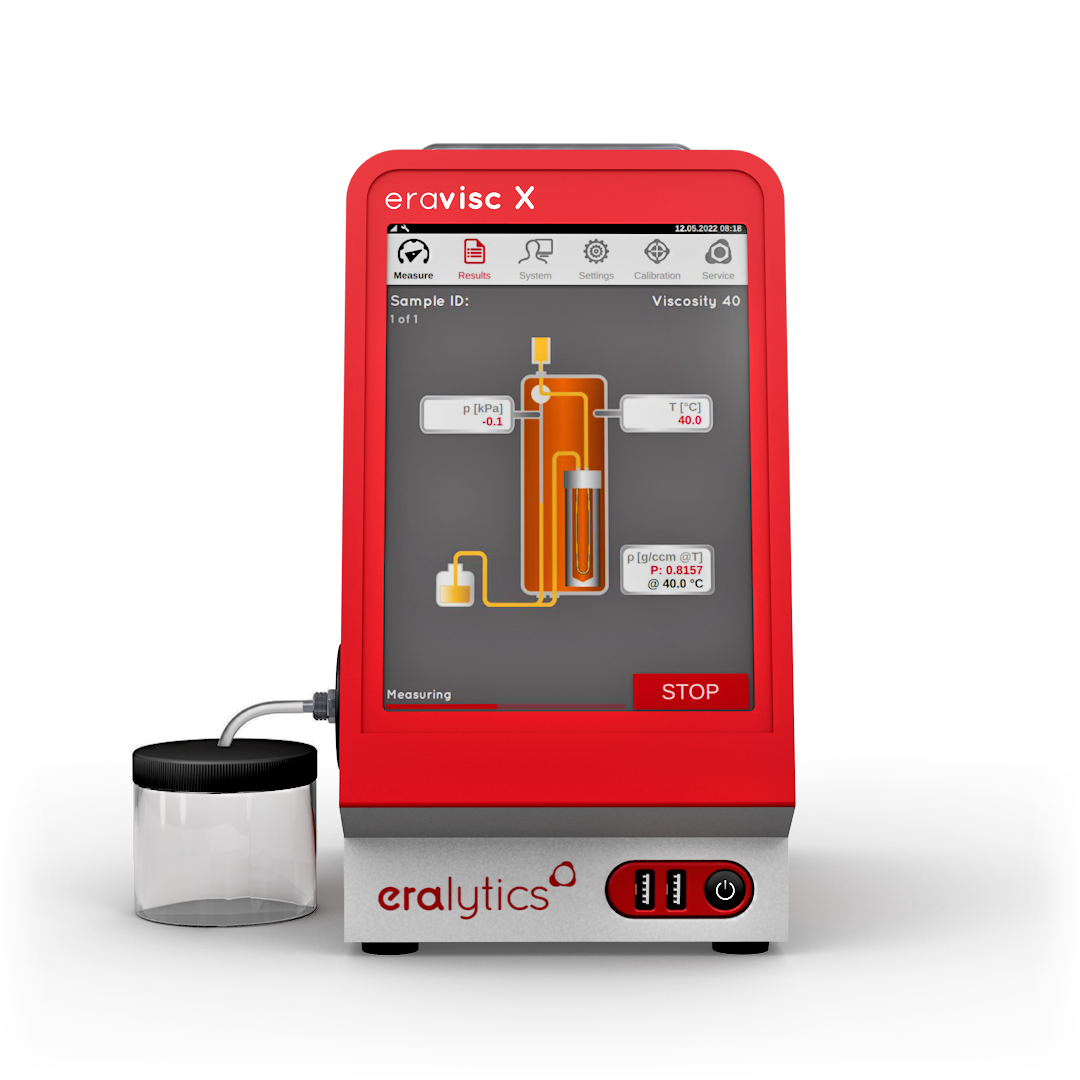

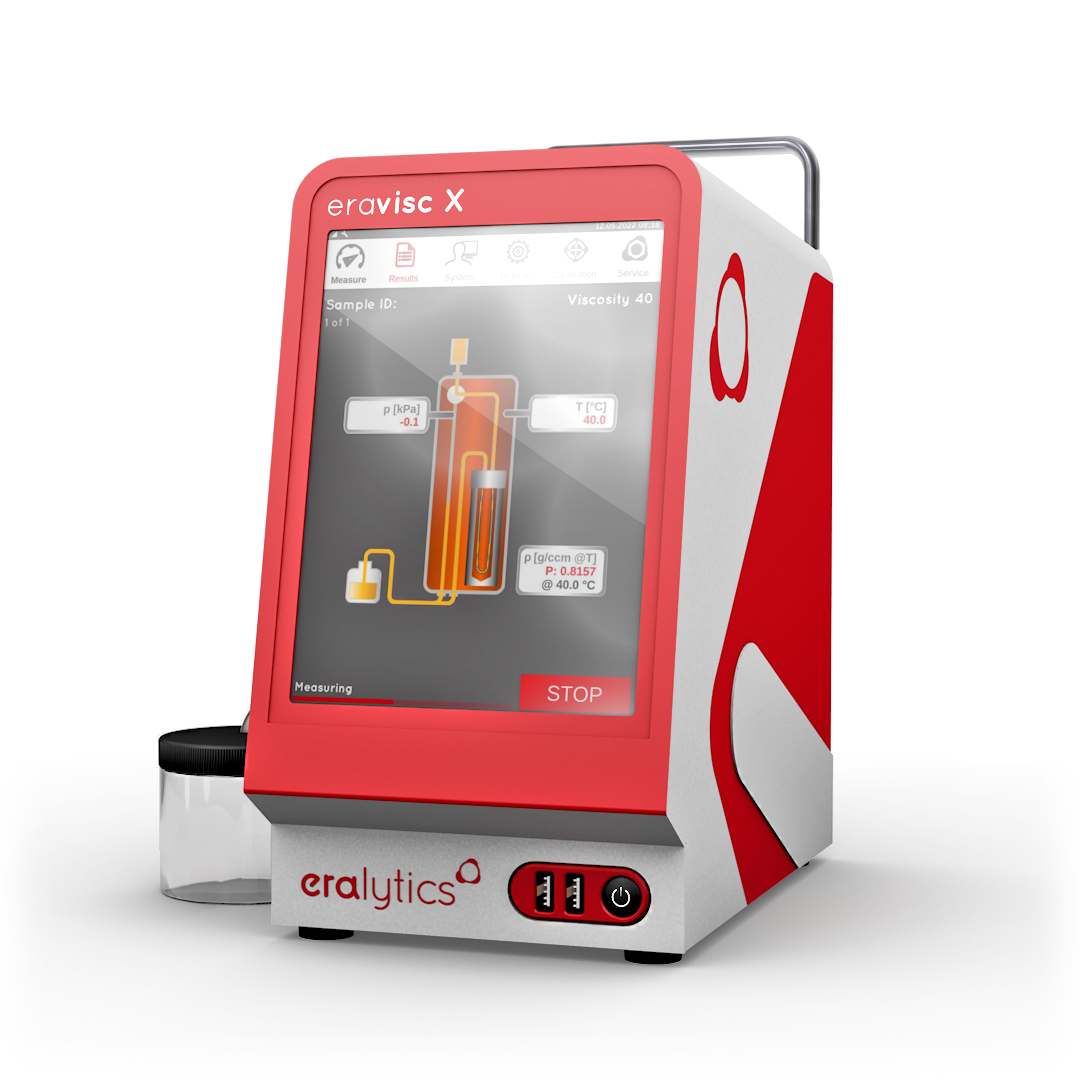

Introducing the ERAVISC X: versatile kinematic viscometer with built-in density module
The ERAVISC X is a compact and rugged kinematic viscometer with a built-in density module, useful across a variety of industries ranging from oil and gas to chemical engineering and even food and beverage. The revolutionary viscosity cell paired with a Hastelloy x-oscillating density meter allows for simultaneous viscosity and density measurements with unparalleled precision.
Automated for the lab
Viscosity and density.
Measured together.
The automatic kinematic viscometer is housed in corrosion-resistant aluminum with a top sample injection site for both the viscosity and density measurements. The ERAVISC X is capable of performing standard measurements at both 40 °C and 100 °C, as well as viscosity index (VI) measurements.
With the ability to create methods tailored to your lab at any temperature up to 100 °C, the unit is extremely versatile for your lab's needs. FillingProof™ bubble detection runs a simple pass/fail pretest so air bubbles do not interfere with results, and a fully automated drying pump handles cleanup between samples.
Built for standardized testing.
This device is fully compliant with ASTM D445 and D7042 standardized viscosity determinations, alongside D4052 and ISO 12185 density methods, making it the ideal solution for determining flow characteristics in both laboratory and mobile settings.
Applications of the ERAVISC X include
- Accurate flow characteristic measurements
- Quality control for production in a quick test
- Research and development in various industries requiring precise data
Key measuring parameters
Three ranges.
One versatile system.
- 01
Viscosity Range
1 to 1000 mm²/s, with an accuracy of 0.8% and a resolution of 0.01 mm²/s.
- 02
Density Range
0 to 3 g/cm³ with accuracy of 0.00005 g/cm³.
- 03
Temperature Range
Viscosity: 15 °C to 100 °C (59 °F to 212 °F). Density: 0 °C to 100 °C (32 °F to 212 °F).
Specs
| Standard Test Methods | Viscosity: Correlation to ASTM D445, D7042, D2270, ISO 3104, ISO 23581 Density: ASTM D4052, D5002, ISO 12185 |
| Special Operation Modes | Viscosity Index (40 °C & 100 °C) Simultaneous Viscosity & Density testing at independent temperatures |
| Measuring Range | Viscosity: 0.5 – 1000 mm2/s | Density: 0 – 3 g/cm3 |
| Temperature Range | Viscosity: 15 °C to 100 °C (59 °F to 212 °F) | Density: 0 °C to 100 °C (32 °F to 212 °F) |
| Repeatability (SD) | Viscosity: 0.25 % | Density: 0.000005 g/cm3 |
| Resolution | Viscosity: 0.01 mm2/s | Density: 0.00001 g/cm3 |
| Temperature Accuracy | 0.02 °C (0.04 °F) |
| Accuracy | Viscosity: 0.8 % | Density: 0.00005 g/cm3 |
| Measurement Time | 1 minute |
| Bubble Detection | (Patent: US 11,493,417 B2) |
| Oscillating Tube (Density) | (Patent: US 11,630,044) |
| PC Software | ERASOFT RCS – remote control Windows® software for multi-instrument remote control, convenient data transfer, viewing spectra and result analysis ERASOFT OCM software – supports operators in the management, operation and predictive maintenance of technical equipment with a focus on oil condition monitoring |
| Sample Volume | 3 mL |
| Bubble Detection* | FillingProofTM – automated bubble detection and bubble quantification |
| Special Features | Integrated fully-automated drying pump, built-in ambient pressure sensor |
| Result Database | Over 100 000 detailed test reports stored |
| Remote Service | Remote service capability via Ethernet |
| Interfaces | Built-in PC with Ethernet, 4 x front and rear USB, and RS232 interfaces; Wi-Fi via USB dongle Direct LIMS connectivity via LAN, output to printer or PC, and export as CSV or PDF Optional input by keyboard, mouse, and barcode reader |
| Display | Industry-proven 8.4“ multilingual color touchscreen |
| Power Requirements | 85 – 264 V AC 47 – 63 Hz, max 150 W |
| Operating Condition | 5 °C – 45 °C up to 90 % rel. humidity (non-condensing) |
| Dimensions & Weight | W x D x H = 15,5 x 26 x 28 cm (6.1 x 10.2 x 11 in); 8 kg (17.6 lb) |
