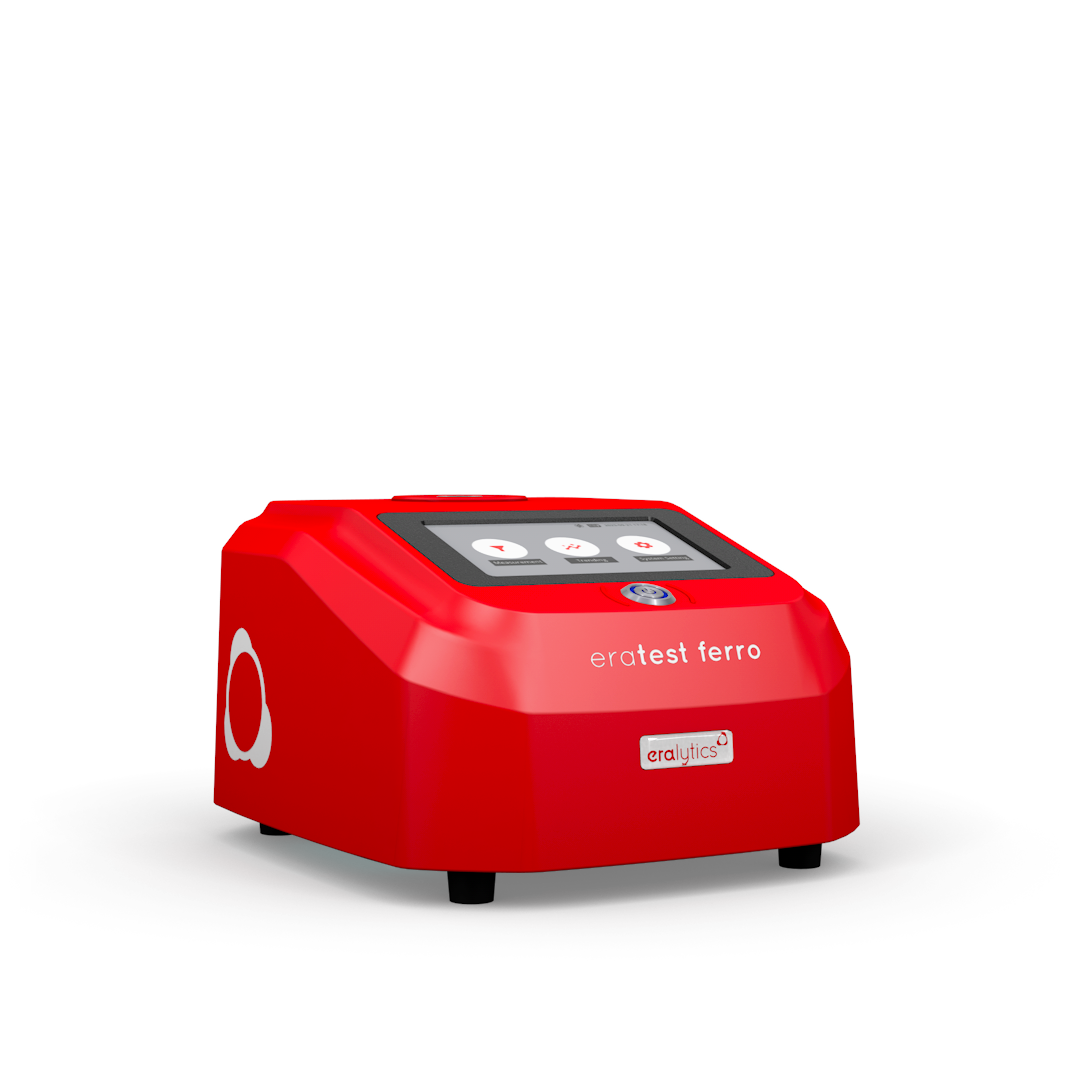

ERATEST FERRO
Battery-operated compact Iron content analyzer for accurate wear particle detection.
- Precise measurement of iron content in ppm
- Rapid analysis with user-friendly interface
- Battery-operated, portable and robust design
- Suitable for field and laboratory use to detect wear metals
- Complies with different standards
Key Features
ASTM
CompliantFully compliant with ASTM D8120, providing both standard method and refined methodology
Straightforward OperationStraightforward Operation: All eralytics analyzers use an intuitive menu structure that is easy to navigate. Samples need no prior preparation and measurements are done fully automated
Enhanced Output EfficiencyEnhanced Output Efficiency: A direct out-of-the-box connection to LIMS (Laboratory Information Management System) is established with a standard Ethernet cable. No extra software or PC are necessary
Fully
PortableFully Portable: The eralytics units are all lightweight and built with an integrated carrying handle, they are versatile and ideally suited for mobile applications as well
Touch
ScreenTouch Screen: All eralytics analyzer results are displayed immediately after the test on their large and user-friendly color touch screen
ERATEST FERRO / Ferrous debris analysis
Every wear particle.
Counted clearly.
Introducing the ERATEST FERRO: precision ferrous debris analysis for oil condition monitoring
The ERATEST FERRO is a high-performance, battery-operated portable analyzer specifically designed for the accurate quantification of ferromagnetic wear particles. This advanced device is essential for oil condition monitoring (OCM), providing critical data that enables predictive maintenance and prevents costly machinery failures. Utilizing state-of-the-art inductive technology, the ERATEST FERRO measures the total mass of ferromagnetic particles, offering precise results with a detection limit as low as 1 mg/L. The device is compliant with ASTM D8120 standards, ensuring reliability and consistency across a wide range of industrial applications.
Compact + User-friendly
Two milliliters.
Results in one second.
Compact and user-friendly, the ERATEST FERRO requires only 2 mL of sample and provides results within a second, regardless of the viscosity of the oil or lubricant, making it ideal for both laboratory and field use.
Its robust design, featuring a color touchscreen interface, allows for easy operation. With dimensions of 21.8 × 25.0 × 13.3 cm (8.6 × 9.8 × 5.2 in) and a weight of just 2.7 kg (6.0 lb), the ERATEST FERRO is highly portable, yet durable to withstand harsh industrial environments.
Compact. Portable. Built for the field.
Highly portable, yet durable to withstand harsh industrial environments, and supplied with 100 sample vials, 100 pipettes, and calibration samples.
Designed for real-world use
- 2 mL of sample
- Results within a second
- Color touchscreen interface
- Laboratory and field use
Inductive measurement principle
Ferrous wear.
No particle-size bias.
What sets the ERATEST FERRO apart is its unique inductive measurement principle, which is insensitive to non-magnetic materials and independent of particle size. This ensures that results are consistent and accurate, regardless of the sample composition.

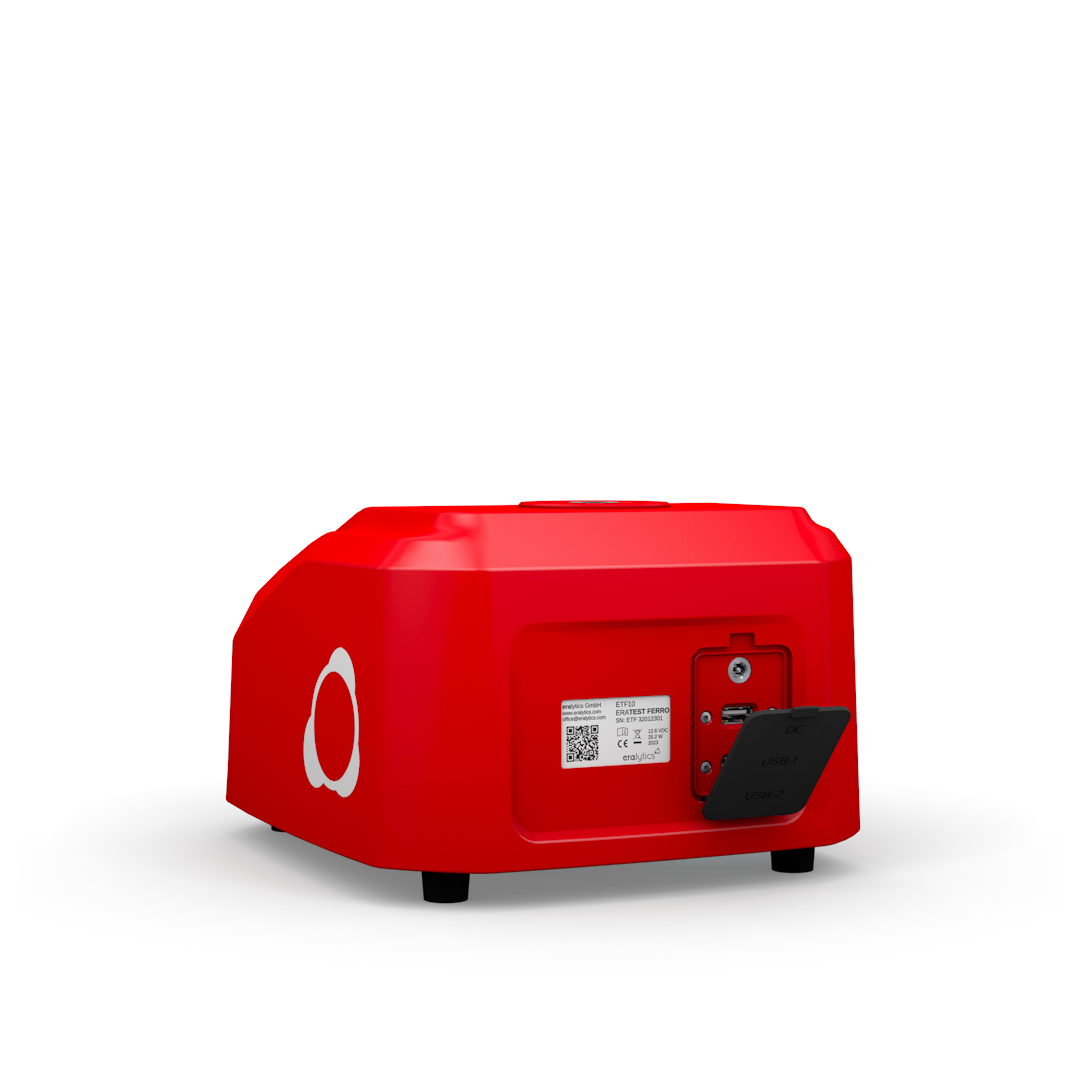

Additionally, the ERATEST FERRO is equipped with multiple connectivity options, including USB interfaces, and supports external keyboards and barcode scanners for streamlined data management, with over 10,000 test results stored on the instrument.
Applications of the ERATEST FERRO include
Consistent and accurate results, regardless of the sample composition.
Where ERATEST FERRO works
- Monitoring wear metals in lubricants to predict and prevent machinery failures
- Analysis of ferromagnetic debris in marine lubricants and gearbox oils within a second
- Quality control in oil processing and power generation systems, regardless of the viscosity of the oil
- Highly accurate on-site testing in transportation, filtration, and process machinery industries
Key measuring parameters
From 0 to 5500 mg/L.
Ferrous debris quantified.
- 01
Measurement Range
0 to 5500 mg/L (ppm) of ferromagnetic particles, in oils, greases, and coolants.
- 02
Detection Limit
As low as 1 mg/L.
- 03
Test Standard
ASTM D8120.
Specs
| Standard Test Methods | ASTM D8120 | |
| Measurement parameter | mg/L (ppm) of ferromagnetic particles | |
| Sample volume | 2 mL | |
| Sample type | Oils, greases, coolants | |
| Minimum measurement time | 1 second | |
| Measurement range | 0 – 5500 ppm | |
| Minimum detection limit | 1 ppm | |
| Scope of delivery | 100 sample vials, 100 pipettes, calibration samples | |
| Results database | Over 10 000 test results stored | |
| Battery | Lithium-ion technology (3400 mAh) for minimum 5 hours operation | |
| Interfaces | USB interfaces, optional input by external keyboard and barcode reader | |
| Operation temperature | 0 °C – 50 °C up to 90 % rel. humidity (non-condensing) | |
| Power requirements | 100 – 240 V AC, 50/60 Hz, 25.2 W | |
| Dimensions (W x H x D) | (W x D x H) = 21.8 x 25.0 x 13.3 cm (8.6 x 9.8 x 5.2 in) | |
| Weight | 2.7 kg (6.0 lb) |
