PAMAS AS3
Automated particle counter for contamination analysis in liquids.
- Up to 600 tests per day with the advanced automated system.
- High-resolution detection for a wide range of particle sizes.
- Real-time data acquisition and analysis with a user-friendly software with extensive data logging.
- Durable design for reliable and long-term use.
- Compliant with ISO and ASTM standards.
Key Features
ISO
CompliantFully compliant with ISO 4402 and ISO 11171, providing both standard method and refined methodology
Adaptable AutosamplingAdaptable Autosampling: The autosampling system can always be adapted to specific customer requirements, offering a range of flexible options including the Liquids Auto Sampler
All Fluid
TypesAll Fluid Types: Analyzes hydraulic oils, insulation and turbine oils, gear and motor oils, water based hydraulic fluids, organic fluids and solvents, fluids with high vapor pressure, and pharmaceutical fluids such as infusion solutions, water and parenterals
QuickQuick: Set up a sample, select a test mode, and start. The sample is cooled at the steepest possible rate without affecting the formation and growth of wax crystals, a critical factor in pour point and cloud point determination, giving a test cycle typically one third to one half that of conventional tilting methods
Straightforward OperationStraightforward Operation: Easy operation with the sample stage at the front for convenient sample handling
Videos

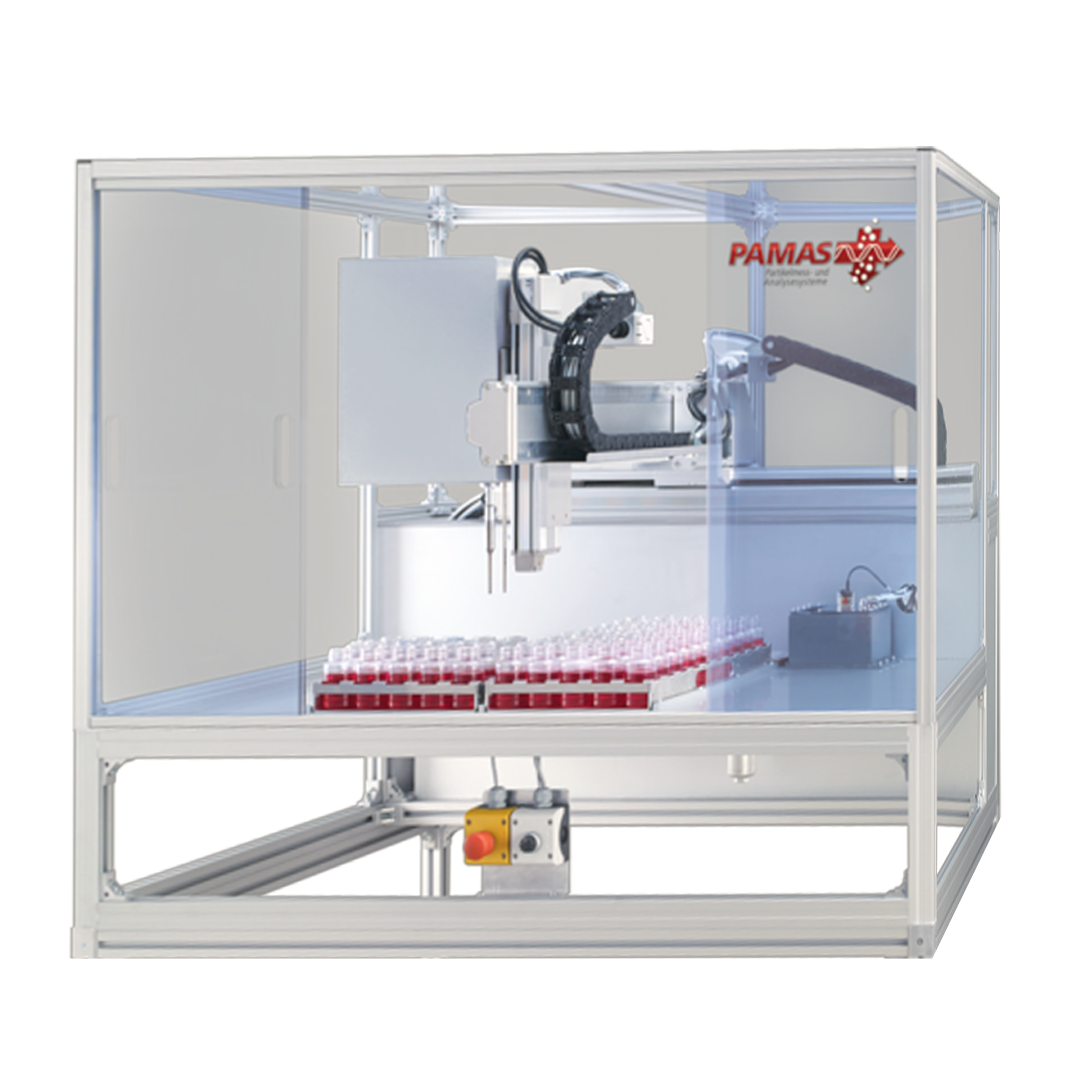

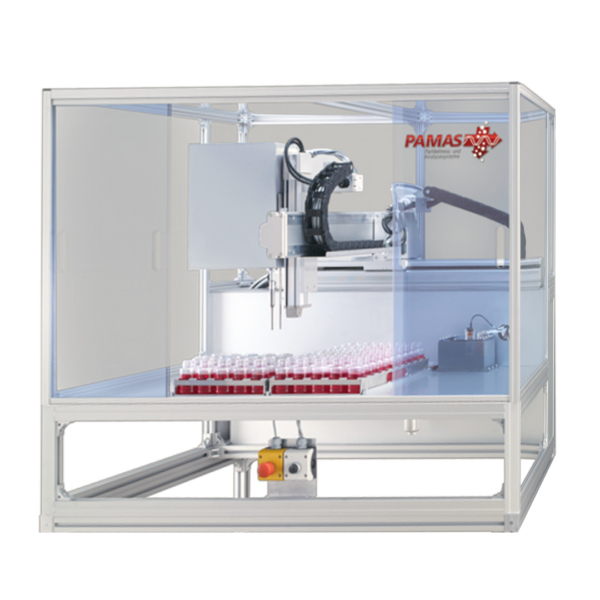

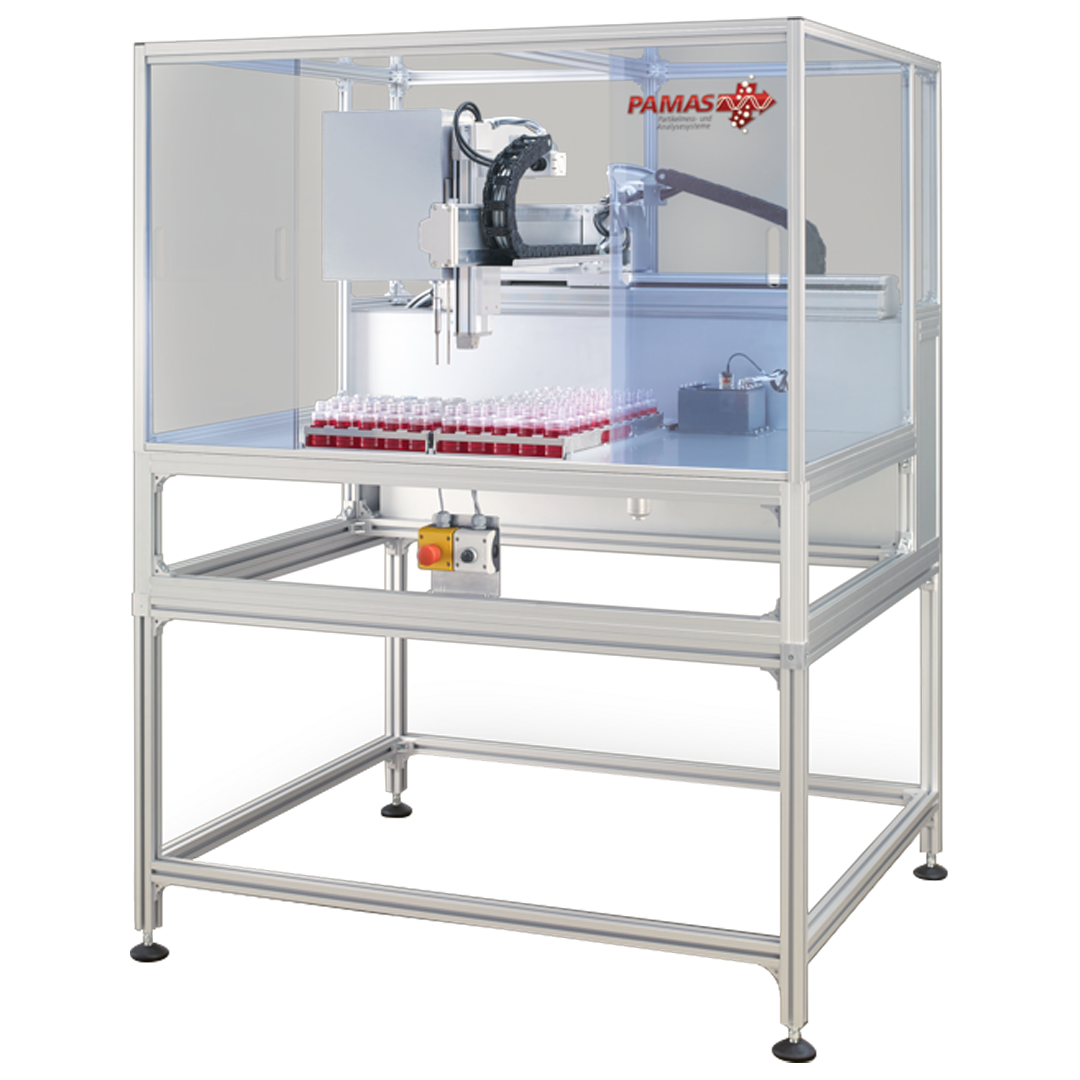

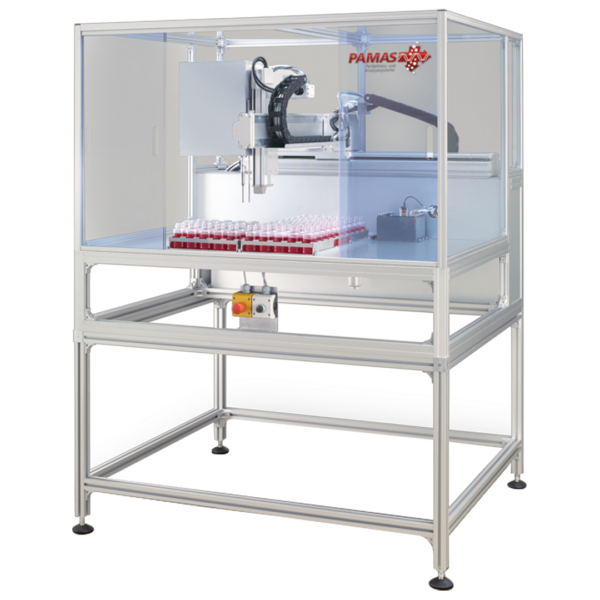

Fully compliant with ISO 4402, ISO 4406, ISO 11171 the PAMAS AS3 automated particle counter and auto-sampler system analyses high quantities of samples. This new PAMAS particle counter is designed to provide sample analysis of several hundred samples per day, with unattended operation. The auto-sampler system offers a multitude of features regarding sample preparation, sample handling, flushing and sample dilution.
The PAMAS AS3 auto-sampling system can always be adapted to specific customer requirements. (e.g. customized tray size.)
View downloadable PAMAS AS3 brochure for all the full specifications.
Specs
| Applicable Test Methods | ISO 4402, ISO 4406, ISO 11171, SAE AS 4059 E, NAS 1638 | |
| Particle counter | • Particle counts in 8 channels • 32-bit high performance CPU with sophisticated programmable digital domain signal conditioning and 4096 internal channels • Data transfer: 8 bit ASCII code through RS 232 port (57600 baud) • Power supply via alternating current (110 V, 115 V, 220 V, 240 V or 50-60 Hz) |
|
| Volumetric sensors: PAMAS HCB-LD-50/50 | Dynamic size range: • 4 – 70 µm(c) according to ISO 11171 • 1 – 100 µm according to ISO 4402 |
|
| Software | The Autosampling software is individually developed for the customer’s specific application and thus can be specifically adapted to individual laboratory infrastructures and to existing LIM systems. | |
| Sample bottle volume | Up to 250 ml | |
| Viscosity | Up to 200 cSt | |
| Relative humidity | 0-95%, non condensing | |
| Size | Various size models available, e.g. 195 cm x 114 cm x 182 cm | |
| Weight | 268 kg |
