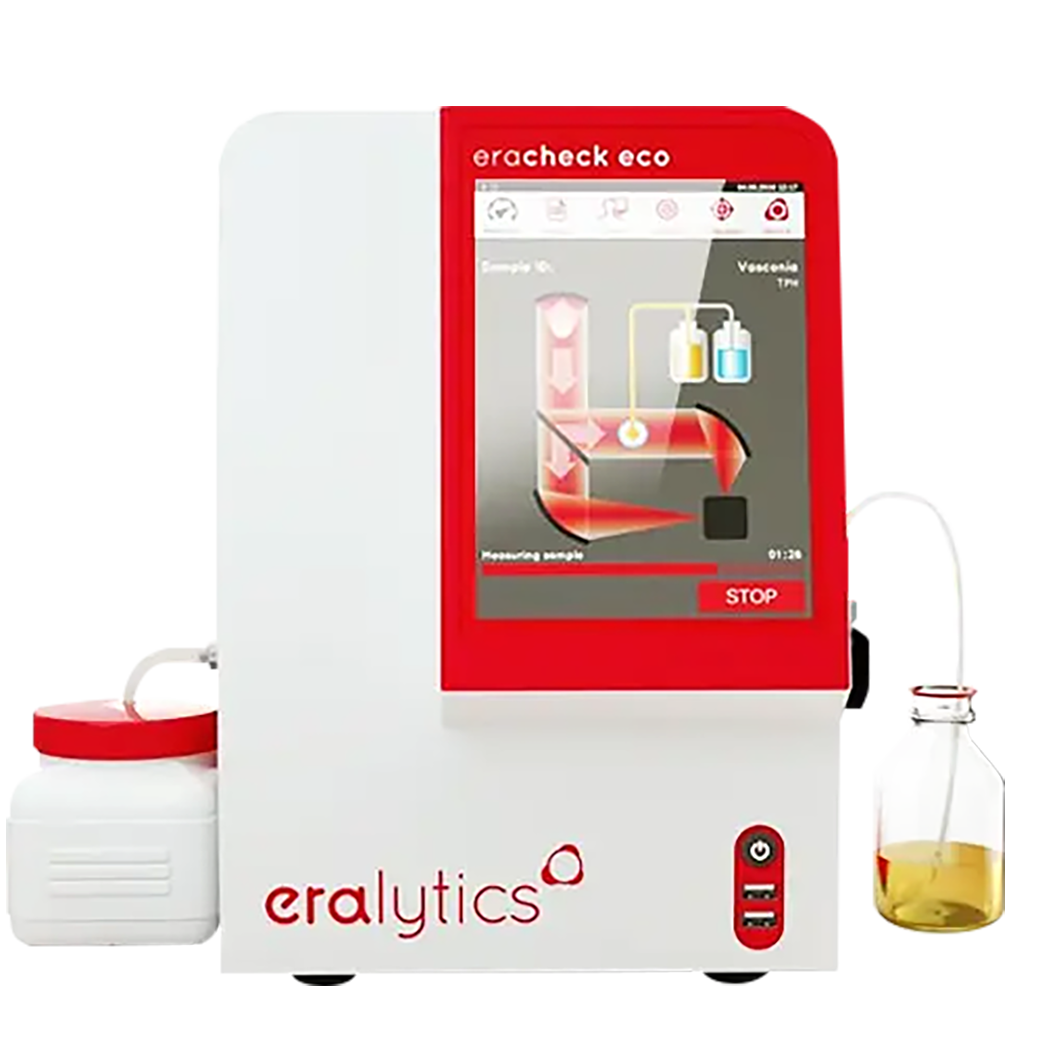

ERACHECK ECO
Eco-friendly analyzer for oil-in-water measurements.
- High precision that ensures even the smallest traces of oil contamination are detected
- Quick and reliable results
- Compact and portable for field use
- Automated process with simple interface
- Compliant with standards for precise hydrocarbon detection
Key Features
ASTM
CompliantFully compliant with ASTM D3921, D4281, D7066, and D7678, providing both standard method and refined methodology
Touch
ScreenTouch Screen: All eralytics analyzer results are displayed immediately after the test on their large and user-friendly color touch screen
Straightforward OperationStraightforward Operation: All eralytics analyzers use an intuitive menu structure that is easy to navigate, including a convenient and easy-to-follow navigator for calibration
Operating RangeOperating Range: Temperature range 10–40 °C with humidity up to 90% RH, non-condensing
Small
FootprintSmall Footprint: The small footprint of the eralytics instruments makes them the first choice for use in the lab and on-site
Carry
CaseCarry Case: A protective hard-shell carry case allows safe transport between the laboratory and on-site testing locations for asset protection
Videos
Oil in water / Lab and field
See oil where
water should be.

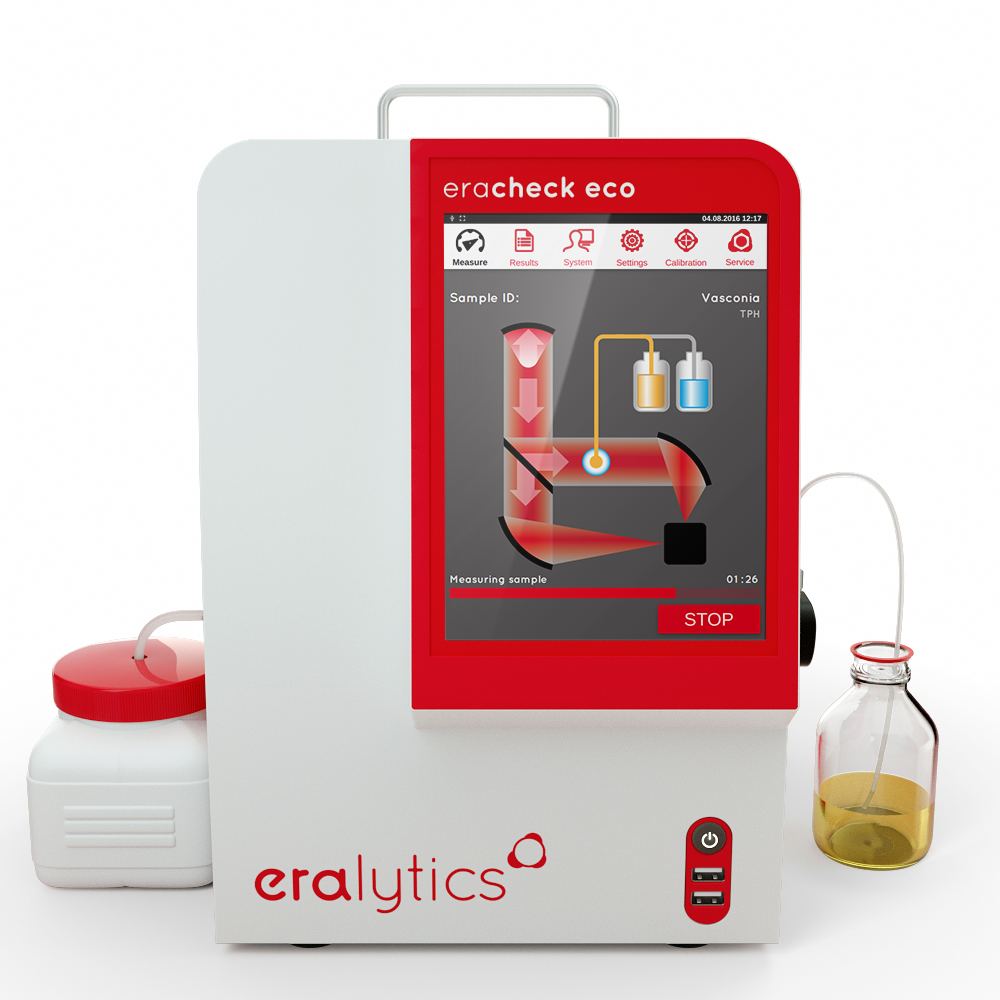

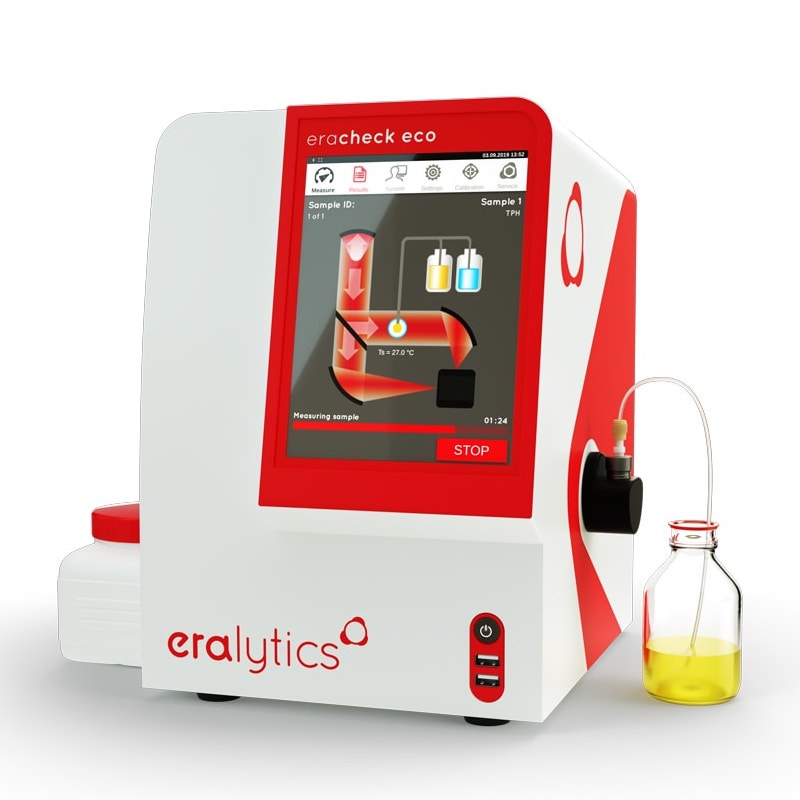

Introducing the ERACHECK ECO: precision oil-in-water analysis for environmental monitoring
The ERACHECK ECO is a high-performance device designed for accurate oil-in-water analysis, crucial for environmental monitoring, regulatory compliance, and quality control. Utilizing advanced infrared (IR) spectrometry, the ERACHECK ECO oil-in-water analyzer adheres to a comprehensive range of international standards, including ASTM D8193, D3921, D7066, D7678, and D4281, ensuring reliable detection of oil content across various water samples.
Oil-in-water detection range
0–1000 mg/L
The analysis
Three signals make
one environmental answer.
- 01
Cyclohexane
CFC-free solvent used for liquid-liquid and solid-liquid extraction.
- 02
IR spectrometry
High-precision infrared measurement of the extracted sample.
- 03
TOG + TPH
Two essential contamination results from a single run.
Approximately five minutes per sample
The ERACHECK ECO oil-in-water analyzer uses cyclohexane as a solvent to measure Total Oil and Grease (TOG) and Total Petroleum Hydrocarbons (TPH) concentrations with high precision. The process is CFC-free and eco-friendly. The device offers a measurement range from 0 to 1000 mg/L, making it suitable for detecting even the smallest traces of oil contamination with the help of enrichment factor calculation.
Compact and portable with a durable design, dimensions of 29 × 35 × 34 cm (11.4 × 13.8 × 13.4 in), and a weight of 9.7 kg (21.4 lb), the ERACHECK ECO is suited to laboratories, field applications, and harsh environments such as oil platforms. Its user-friendly interface supports easy operation with minimal training and provides rapid, accurate results within approximately five minutes per sample, including sample preparation.
Key measuring parameters
Built for the water
that cannot be overlooked.
- TOG
Total Oil and Grease
0–1000 mg/L
- TPH
Total Petroleum Hydrocarbons
0–1000 mg/L
Applications of the ERACHECK ECO
- Monitoring oil-in-water levels in offshore and onshore oil production
- Ensuring compliance with environmental regulations in industrial wastewater treatment
- Supporting research and development in environmental science
- Quality control in industrial processes
Specs
| Standard Test Methods | ASTM D8193 | |
| Correlation To | Infrared spectroscopy: ASTM D3921, D7066; DIN 38409-H18; OSPAR IR method; IP 426 Gas chromatography: ISO 9377-2, ISO 9377-2 (mod) OSPAR, ISO 16703; MADEP-EPH; EN 14039 Gravimetry: EPA 1664, EPA 9071; ASTM 4281; ISO 9377-1 |
|
| Applications | TPH (Total Petroleum Hydrocarbon) and TOG (Total Oil and Grease) measurements in water and soil | |
| Extraction Method | External liquid-liquid or solid-liquid extraction | |
| Extraction Solvent | Cyclohexane | |
| Sample Volume | Typically 900 mL water and 50 mL cyclohexane (min. 10 mL solvent required per measurement) | |
| Sample Clean-up (TPH) | Simplified removal of polar substances over attachable Florisil® cartridges | |
| Measurement Time | Appr. 2 min + 2 min background measurement | |
| Measurement Range | up to 1 000 mg/L oil-in-water up to 36 000 mg/kg oil-in-soil ASTM D8193: 0-1000 mg/L oil-in-water |
|
| Display | Industry proven 8.4″ multilingual color touchscreen | |
| Limit of Detection | 0.5 mg/L oil-in-water (900:50 mL H2O :Solvent) 18 mg/kg oil-in-soil (20 g:40 mL Soil:Solvent) |
|
| Repeatability | Enrichment factor 18 (900:50 mL H20: Solvent) 0-49.9 mg/L 0.2 mg/L 50-299.9 mg/L 0.5 mg/L 300-1 000 mg/L: 1.2 mg/L |
|
| Interfaces | Built-in PC with Ethernet, front and rear USB and RS232 interfaces Direct LIMS connectivity via LAN, output to printer or PC and export as CSV or PDF Optional input by external keyboard, mouse and barcode reader | |
| Remote Control | Remote service capability via Ethernet interface | |
| PC Software | ERASOFT RCS – remote control Windows® software for multi-instrument remote control, convenient data transfer and result analysis | |
| Result Database | Over 100 000 detailed test reports stored in internal memory | |
| Alarm Tracking | All alarm messages are stored in the database together with the result | |
| Power Requirements | Auto-switching 85–264 V AC, 47–63 Hz, max. 150 W (multi-voltage power supply) Field application: 12 V DC (vehicle battery) adapter available | |
| Dimensions / Weight | (W x D X H) = 29.1 x 32.9 x 34.8 cm (11.5 x 12.9 x 13.7 in) / 9.3 kg (20.5 lb) |
