ERAJET FAME
Fast, reliable and portable Jet fuel analyzer for precise Fatty Acid Methyl Ester (FAME) content measurement.
- Accurate detection of FAME in jet fuel
- Rapid analysis with results in minutes
- Easy-to-use interface
- Portable and durable for field applications
- Complies with different standards
Key Features
Standards
CorrelatedCorrelated to ASTM D7797 and IP 583 by infrared spectroscopy and to IP 585, IP 590, and IP 599 by gas chromatography, and referenced against the ASTM D1655 fuel specification
Straightforward OperationStraightforward Operation: All eralytics analyzers use an intuitive menu structure that is easy to navigate, and automatic sample introduction draws directly from the sample bottle with no prior preparation required
Enhanced Output EfficiencyEnhanced Output Efficiency: Direct LIMS connectivity via LAN, with built-in Ethernet, front and rear USB and RS232 interfaces, Wifi via USB dongle, output to printer or PC, and export as CSV or PDF
Extensive
DatabaseExtensive Database: Over 100,000 detailed test reports can be stored in the internal memory
High
PrecisionHigh Precision: Repeatability of r ≤ 4 mg/kg with no false positives and reproducibility of R ≤ 6 mg/kg, with a method detection limit of 10 mg/kg
QuickQuick: A complete measurement takes five minutes from a 35 mL sample, delivering turnaround times significantly shorter than traditional laboratory methods
Automatic
SamplingAutomatic Sampling: Sample introduction is fully automatic, drawing directly from the sample bottle with no manual transfer step
Fully
PortableFully Portable: At 10.5 kg (23.1 lb) the unit is lightweight and suited to mobile applications, with a 12 V DC vehicle battery adapter available for field use
Small
FootprintSmall Footprint: At 31.8 x 32.9 x 34.8 cm (12.5 x 12.9 x 13.7 in) the compact footprint makes the unit a first choice for use in the lab and on-site
Alarm
TrackingAlarm Tracking: All alarm messages are stored in the database together with the result
Aviation fuel safety
Detect contamination.
Clear the fuel to fly.
FAME detection range
10 mg/kg
250 mg/kg

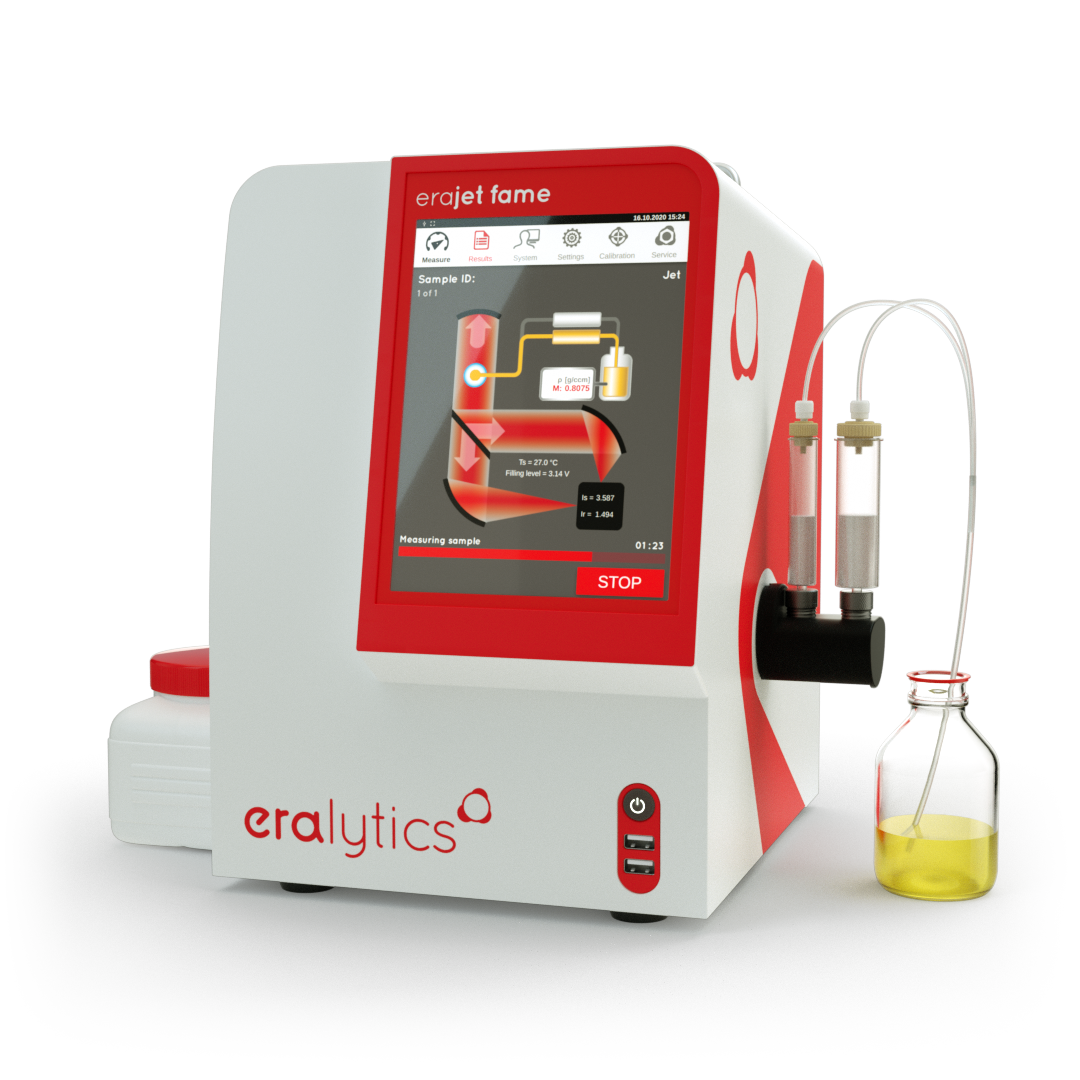

Introducing the ERAJET FAME: precision FAME detection in jet fuel for aviation safety
The ERAJET FAME is a state-of-the-art portable FTIR spectrometer specifically designed to measure the concentration of fatty acid methyl esters (FAME) in jet fuel with high precision. This instrument is critical for ensuring that aviation fuels meet strict international safety standards. Utilizing advanced mid-infrared spectroscopy, the ERAJET FAME delivers reliable and accurate results, detecting FAME levels as low as 10 mg/kg and up to 250 mg/kg. The device's fully automated process provides precise and dependable readings crucial for maintaining fuel quality in the aviation industry.
Fast field + lab workflow
Ready in five minutes.
Built to move.
5 minutes
35 mL sample
The system's integrated pump, intuitive touchscreen interface, and fully automated operation simplify the testing process. The ERAJET FAME is designed for ease of use and efficiency, making it suitable for both laboratory and field applications. Its portable and robust design, with dimensions of 27.5 × 35 × 28 cm (10.8 × 13.8 × 11 in) and a weight of only 10 kg (22 lb), allows for easy transport and operation in various environments. The ERAJET FAME is also equipped with advanced data handling capabilities, including USB ports, Ethernet connectivity, and compatibility with LIMS systems, enabling seamless integration into existing workflows.
Verified for confidence
Multiple IR peaks.
One dependable decision.
ASTM D7797 · IP 583 · IP 585
The dual solid-phase extraction method, coupled with the use of multiple IR peaks for verification, provides an unmatched level of precision in FAME detection. The results are highly repeatable and reproducible.
- 01
FAME
Detection range of 10–250 mg/kg for AVTUR, with a method detection limit of 10 mg/kg.
- 02
Precision
Repeatability of r ≤ 4 mg/kg and reproducibility of R ≤ 6 mg/kg.
- 03
Interference Check
FIC FAME Interference Check distinguishes FAME from other esters, such as plasticizers, to exclude false positives.
Applications of the ERAJET FAME
- Ensuring compliance with aviation fuel standards by detecting FAME contamination
- Quality control in fuel production and distribution
- Testing at airports, jet fuel terminals, and refineries
- Supporting research and development in fuel additives and formulations
Specs
| Available Test Method | Rugged NDIR-Spectrometer – no moving parts |
| Correlation to | Infrared spectroscopy: ASTM D7797, IP583 Gas chromatography: IP 585, IP590, IP599 |
| Fuel Specification | ASTM D1655 |
| FAME Interference Check | FICTM FAME Interference Check (patent pending) to exclude false positive FAME results |
| Cartridge Set | Distinction between FAME and other esters (plasticizers) even at very low concentrations |
| Sample Volume | 35 mL |
| Measurement Time | 5 min |
| Measurement Range | 10 – 250 mg/kg for AVTUR |
| Method detection limit (MDL) | 10 mg/kg |
| Precision | Repeatability: r ≤ 4 mg/kg – no false positives Reproducibility: R ≤ 6 mg/kg |
| Automatic sample introduction | Sampling directly from sample bottle |
| Interfaces | Built-in PC with Ethernet, front and rear USB and RS232 interfaces; Wifi via USB dongle Direct LIMS connectivity via LAN, output to printer or PC and export as CSV or PDF Optional input by keyboard, mouse and barcode reader |
| Remote Control | Remote service capability via Ethernet interface |
| PC Software | ERASOFT RCS – remote control Windows® software for multi-instrument remote control, convenient data transfer and result analysis |
| Result Database | Over 100 000 detailed test reports stored in internal memory |
| Alarm Tracking | All alarm messages are stored in the database together with the result |
| Power Requirements | Auto-switching 85 – 264 V AC, 47 – 63 Hz, max. 150 W (multi-voltage power supply) Field application: 12 V DC (vehicle battery) adapter available |
| Dimensions / Weight | (W x D x H) = 31.8 x 32.9 x 34.8 cm (12.5 x 12.9 x 13.7 in) / 10.5 kg (23.1 lb) |
