Eraflash Flash Point Analyzer
Flash point tester with advanced Peltier Boost Technology (PBT).
Key Features:
- Small sample volume required
- Wide temperature range for various applications, ability of connecting to high temperature module (HTM) extension to increase the temperature range up to 420°C (788°F)
- Fast results and easy-to-use interface
- Portable and suitable for on-site testing
- Compliant with standards, safe and quick measurements
DIN, 51 758, ISO, 13736, 3680, 3679, 2719, IP, 34, 170, ASTM, D56, D3828, D93, D6450, D7094
The ERAFLASH is the safest and fastest way to test the flashpoint of fresh & used oils, diesel, and jet fuel. Accurate enough for a standard laboratory, and portable enough to be used in a mobile lab, this petroleum, diesel, and gasoline flash point testing equipment is fully compliant with ASTM D6450 and D7094 and tests flashpoints built around Continuously Closed Cup Flashpoint (CCCFP) methods.

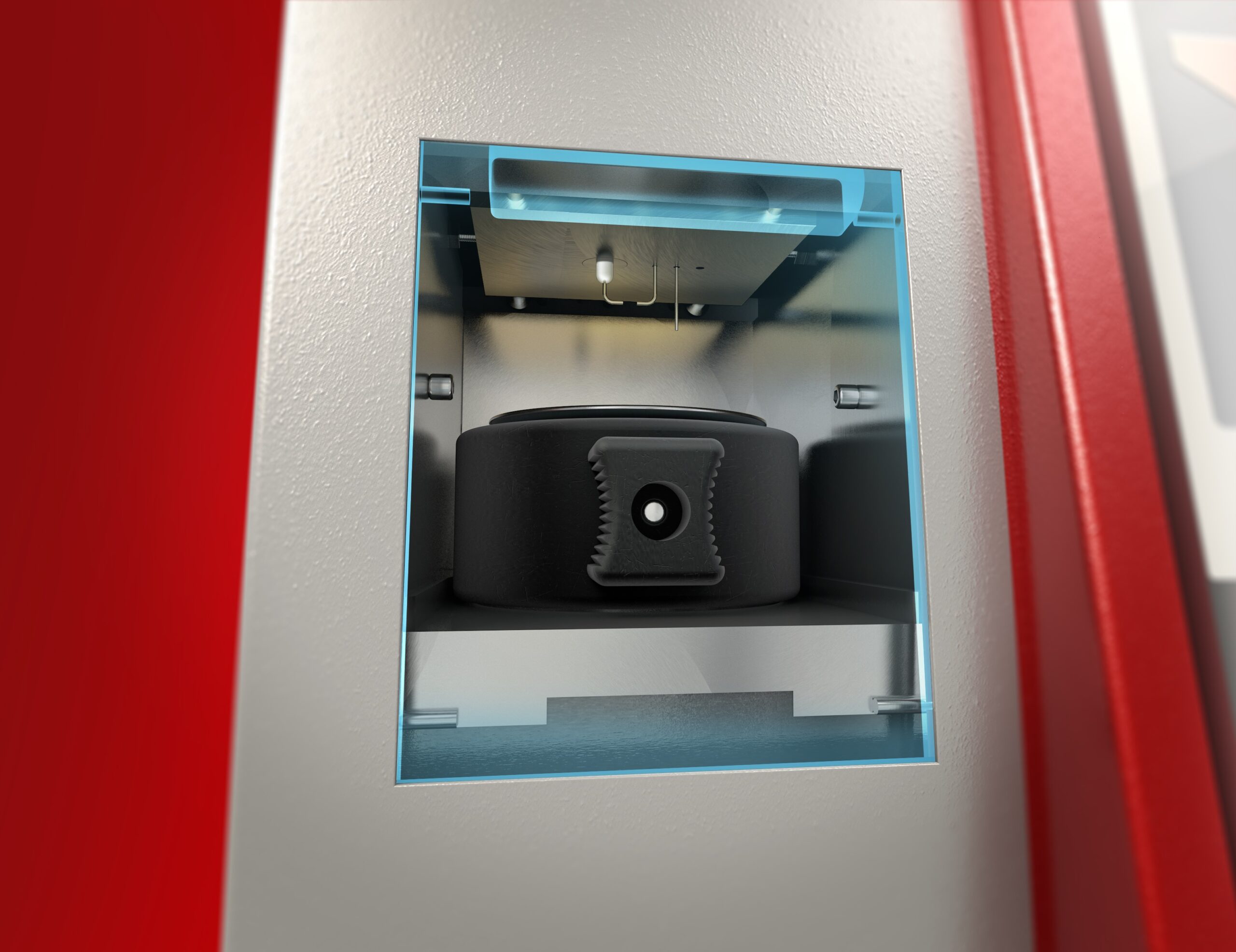

This flash point tester has the distinct capability of measuring temperatures ranging from -25 to 420C (-13 to 788F) with only 1-2 ml of sample size, making it the first flashpoint tester worldwide to cover the full temperature range. During measurements, an electric arc ignites the sample vapor and the analyzer determines the flash point by the pressure change inside the closed cup. Flashpoint testing never was safer and easier until ERAFLASH.
Featuring a built-in industry PC with USB interfaces, the testing equipment allows for advanced data management by connecting external devices including modern printers, external keyboards, and barcode readers, as well as integrating with LIMS systems. The ERAFLASH is additionally equipped with large data point memory storage and password security. The advanced analyzer?s data can be viewed on the included large color touch screen and saved on a memory stick and documented in universal PC worksheet formats for further analysis.
To request a quote for the ERAFLASH, please click here.?We also offer the smaller ERAFLASH LT model.
Features
![](https://ayalytical.com/wp-content/uploads/2024/08/features-astm.png)
ASTM
CompliantFully compliant to ASTM D6450 and D7094
![](https://ayalytical.com/wp-content/uploads/2024/08/features-language.png)
Multilingual AccessibilityMultilingual Accessibility: Operation and output capabilities in the following languages: English, Spanish, Portuguese, Russian, Chinese (coming soon), French (coming soon)
![](https://ayalytical.com/wp-content/uploads/2024/08/features-thermoregulation.png)
Maximized ThermoregulationSingle analyzer high speed heating and cooling using patented Peltier Boost Technology
![](https://ayalytical.com/wp-content/uploads/2024/08/features-minimized-maintenance.png)
Minimized MaintenaceMinimized Maintenace: Enhanced electrode protection and self-cleaning ignition system to minimize cleaning and maintenance with patented contamination prevention technology
![](https://ayalytical.com/wp-content/uploads/2024/08/features-waste-reduction.png)
Considerable Waste ReductionConsiderable Waste Reduction: Only 1 mL (D6450) or 2 mL (D7094) of sample is required per test drastically reducing waste in more traditional testing methods
![](https://ayalytical.com/wp-content/uploads/2024/08/features-automation.png)
Straightforward OperationStraightforward Operation: An intuitive menu structure ensures seamless user navigation
![](https://ayalytical.com/wp-content/uploads/2024/08/features-portable.png)
Fully
PortableFully Portable: An accessible design that is lightweight and has an integrated carrying handle allows for suitable and smooth mobility
![](https://ayalytical.com/wp-content/uploads/2024/08/features-ethernet.png)
Enhanced Output EfficiencyEnhanced Output Efficiency: Direct ethernet and LIMS connectivity and in unit result transfer to reports and email
![](https://ayalytical.com/wp-content/uploads/2024/08/features-augmented-efficiency.png)
Augmented
EfficiencyFaster thermal manipulation paired with small sample sizes rapidly expedites sample testing
![](https://ayalytical.com/wp-content/uploads/2024/08/features-streamlined-screens.png)
Streamlined Unknown ScreensFast scan test programs can cover a wide range of temperatures to hone in on unknown samples
Accessories
The following accessories are recommended for purchase in sequential order (see eStore):
1st Year: | No spare parts are required |
2nd Year: | D7094 Sample cup standard (aluminum, nickel plated, 2 ml) D6450 Sample cup standard (aluminum, nickel plated, 1 ml) Sample cup carrier Stirring magnet Disposable pipettes (5 pcs.) Brass eraser for cleaning of electrodes Cleaning tools for electrodes and oven surface (wet and dry sweeper) (5 pcs.) Ceramic ERAFLASH sample temperature sensor ERAFLASH oven temperature sensor |
Remaining Parts: |
Specs
Available Test Methods | ASTM D6450, ASTM D7094 | |
Pre-Programmed Correlation Methods To | Pensky Martens Closed Cup: ASTM D93, EN ISO 2719, DIN 51758, IP 34, JIS K2265 TAG Closed Cup: ASTM D56 Abel Pensky Closed Cup: ISO 13736, IP 170 Small Scale Closed Cup and Flash / No Flash methods: EN ISO 3679, EN ISO 3680, ASTM D3828 |
|
Fuel Specifications (ASTM D7094) | ASTM D396, ASTM D975, ASTM D2880, ASTM D3699, ASTM D7467 | |
Speed Tests | Fast screening test programs for unknown samples | |
PBT – Peltier Boost Technology™ | High speed heating & cooling -25 °C to 420 °C (-13 °F to 788 °C) with a single analyzer |
|
Combustion GraphicsTM | Display of combustion characteristics for contamination analysis | |
CPT – Contamination Prevention Technology™ | Advanced electrode protection and self-cleaning ignition system to minimize cleaning and maintenance | |
Combustion Graphics™ | Display of combustion characteristics for contamination analysis | |
QuickCal™ | Dry Block Calibration with eralytics unique directly attached Temperature Calibration Block (EF01-TCB) | |
Fuel Dilution Program | Automatic fuel dilution measurement for the analysis of used engine oils | |
Temperature Range | 0 °C to 200 °C (32 °F to 390 °F) stand alone. No external cooling is required. Down to -25 °C (-13 °F) oven temperature with external cooling Up to 420 °C (788 °F) with optional High Temperature Module (EF01-HTM) |
|
Temperature Stability | 0.1 °C (0.2 °F) | |
Interfaces | Built-in PC with Ethernet, USB and RS232 interfaces Direct LIMS connectivity via LAN and output to printer or PC |
|
Sample Troughput | Up to 12 samples per hour | |
Sample Volume | 1 mL (ASTM D6450), 2 mL (ASTM D7094) | |
Sample Cups | Nickle plated aluminium, stainless steel cups available upon request | |
Display | Industry proven 8″ color touchscreen | |
Languages | English, German, French, Spanish, Russian, Chinese Additional langages available upon request |
|
Interfaces | Built-in PC with Ethernet, USB and RS232 interfaces Direct LIMS connectivity and output to printer or PC Optional input by external keyboard, mouse and barcode / QR-code reader |
|
Remote Control | Remote service capability via Ethernet interface | |
PC Software | ERASOFT RCS – remote control Windows® software for multi-instrument remote control, convenient data transfer andresult analysis | |
Result Database | Over 100 000 detailed test reports stored in internal memory | |
Operating Conditions | Temperature range 10°C to 40°C Humidity up to 90% RH, non condensing |
|
Power Requirements | Auto-switching 85-264 V AC, 47-63 Hz, max. 150 W (multi-voltage power supply) Field application: 12 V DC (vehicle battery) adapter available |
|
Dimensions / Weight | 22 22 x 32 x 28 cm (8.7 x 12.6 x 11 in) / 8 kg (17.6 lb) |
Downloads
Download our brochure for more details
Videos
Configuration
ASTM D7094
AYA-82-22040 | D7094 Sample cup standard (aluminum, nickel plated, 2 ml) |
AYA-82-22044 | Sample cup carrier |
AYA-82-22045 | Stirring magnet |
AYA-82-22046 | Disposable pipettes (5 pcs.) |
AYA-82-22047 | Brass eraser |
AYA-82-22056 | Cleaning tools for electrodes and oven surface |
AYA-82-22086 | Power cable |
ASTM D6450
AYA-82-22041 | D6450 Sample cup standard (aluminum, nickel plated, 1 ml) |
AYA-82-22044 | Sample cup carrier |
AYA-82-22045 | Stirring magnet |
AYA-82-22046 | Disposable pipettes |
AYA-82-22047 | Brass eraser |
AYA-82-22056 | Cleaning tools for electrodes and oven surface |
AYA-82-22086 | Power cable |
