ERACHECK X
Advanced oil-in-water analyzer for rapid and precise measurements.
Key Features:
- Precise measurement of oil contamination
- Fast analysis with minimal maintenance
- User-friendly touchscreen interface
- Portable and robust for field applications
- Compliant with standards for high accuracy
ASTM, D3921, D7066, D7678, D4281, DIN, 38409-H18, EPA, 1664A, 9071B

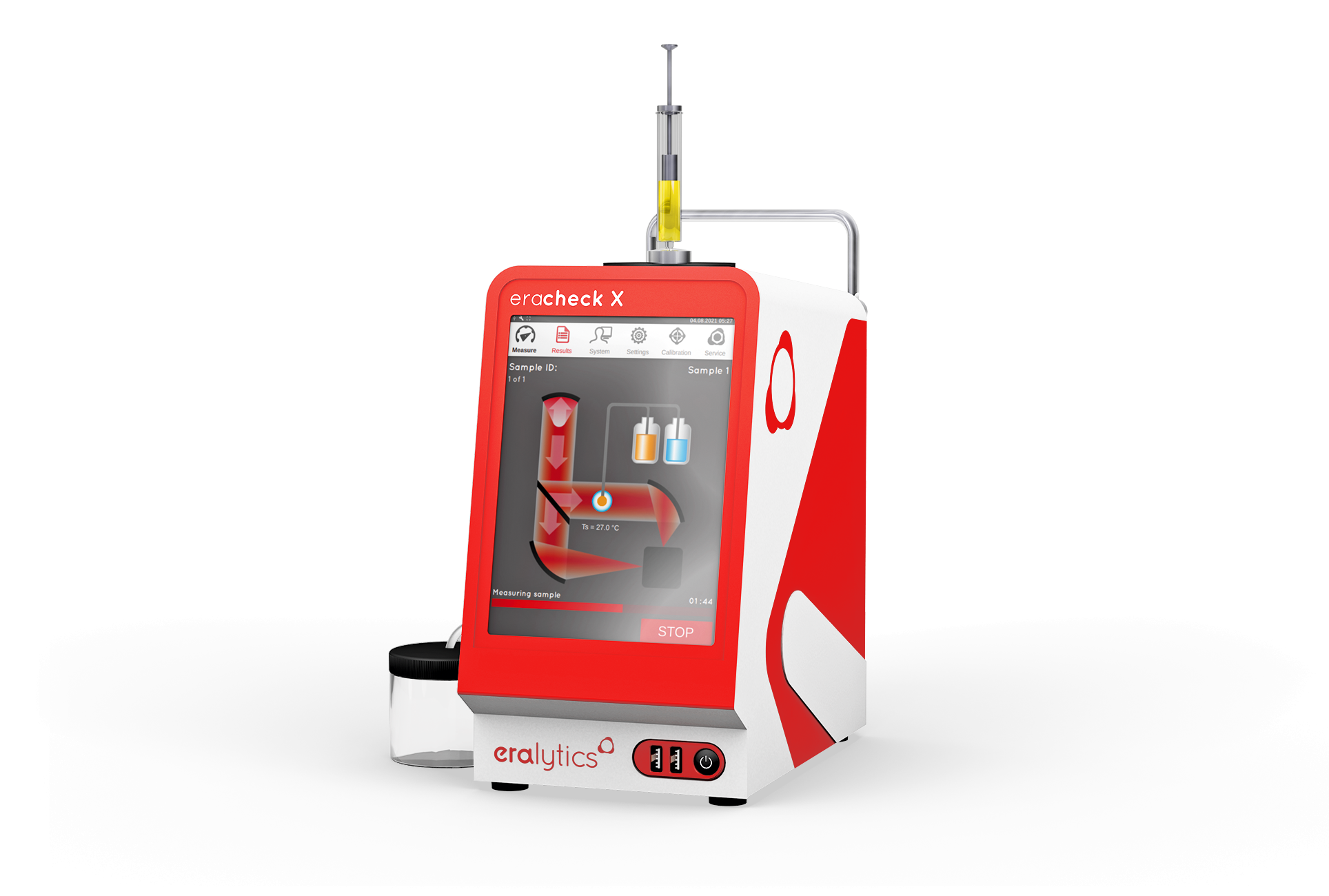

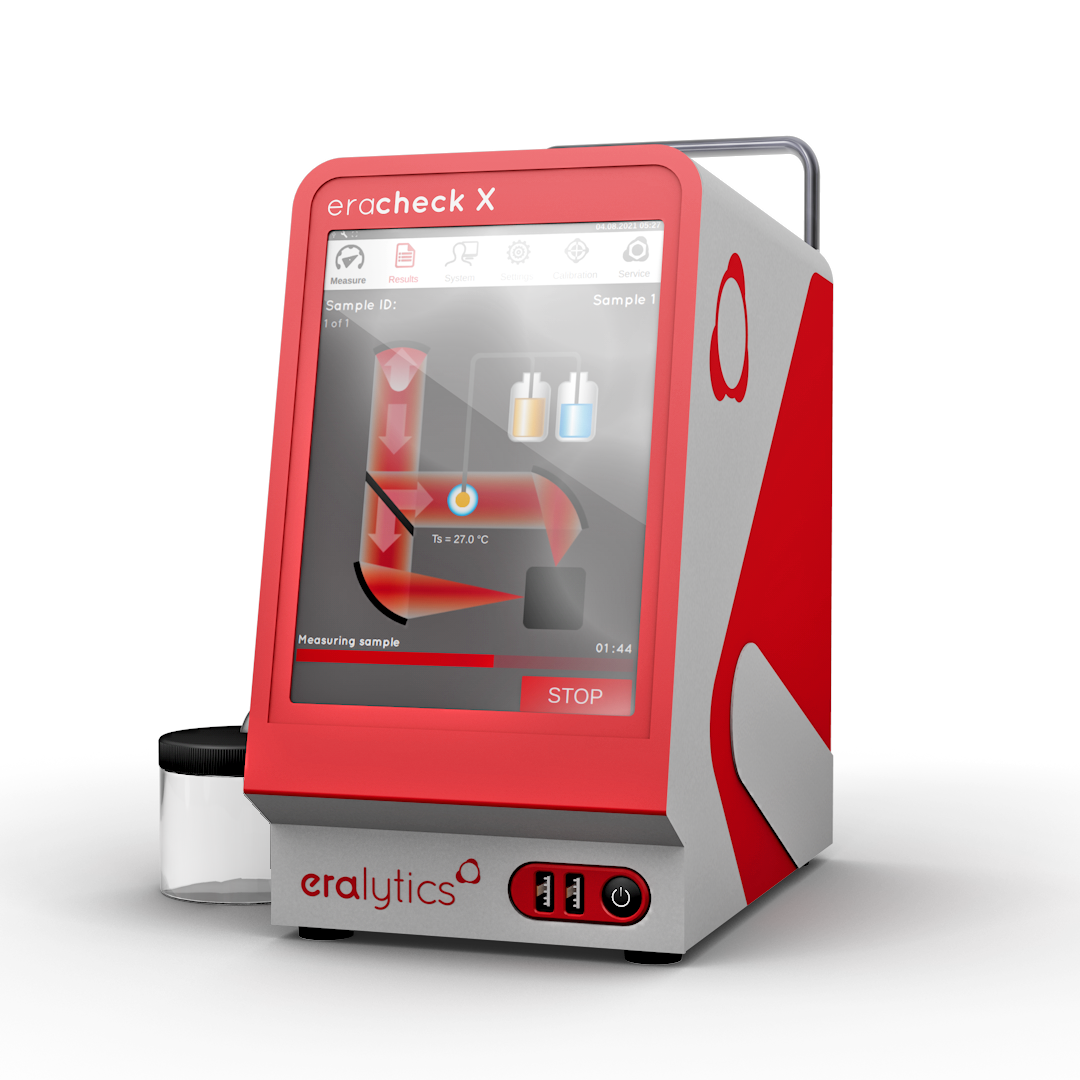

ERACHECK X is a high-end dual-beam non-dispersive IR spectrometer for the highly accurate measurement of oil-in-water. Based on the inexpensive and environmentally friendly CFC-free solvent, cyclohexane, ERACHECK X measures TOG, TPH, and FOG in water in full compliance with ASTM D8193 with sub-ppm precision, offering excellent correlation to EPA 1664, ISO 9377, and OSPAR.
The oil-in-water analyzer ERACHECK X is Eralytics latest product innovation. It is the first analyzer based on our new portable and easy-to-operate instrument platform, convincing with a rugged aluminum housing with most compact dimensions, still offering a large color touchscreen and a state-of-the-art built-in industry PC.
To request a quote for the ERACHECK X portable oil-in-water analyzer, please click here.
Features
ERACHECK is fully compliant with ASTM D2896, ASTM D445, ASTM D664, ASTM D7412, ASTM D7414, ASTM D7415, ASTM D7418, ASTM D7624, ASTM E2412, providing both standard method and refined methodology.
All eralytics analyzers use an intuitive menu structure that is easy to navigate. Samples need no prior preparation and measurements are done fully automated.
A direct out-of-the-box connection to LIMS (Laboratory Information Management System) is established with a standard Ethernet cable.No extra software or PC are necessary.
The small footprint of the eralytics instruments makes them the first choice for use in the lab and on-site.
The Eralytics units are all lightweight and built with an integrated carrying handle, they are versatile and ideally suited for mobile applications as well.
All Eralytics analyzer results are displayed immediately after the test on their large and user-friendly color touch screen.Accessories
The following accessories are recommended for purchase in sequential order (see eStore):
| 1st Year: | No spare parts are required |
| 2nd Year: | Sampling tube with luer connector for ERACHECK Metal filter 16 µ (5 pcs) Mesh inlet filter 80µ (5 pcs) Teflon o-ring for EV01-A002a Mesh inlet filter 80µ Outlet tube Protective film for touch display (5 pcs) Stylus for data entry via touch display Glas syringe 20 ml Micro-Syringe (250 µl) Volumetric flask (50 ml) with glass stopper |
| Remaining Parts: |
Specs
Extraction SolventCyclohexane or TetrachloroethyleneSecurityUser-specific calibrations and password protection
| Standard | ASTM D8193 |
| Correlation to | Infrared spectroscopy: ASTM D7678, ASTM D3921, D7066; DIN 38409-H18; OSPAR IR method; IP426 Gas chromatography: ISO 9377-2, ISO 9377-2 (mod) OSPAR, ISO 16703; MADEP-EPH; EN 14039 Gravimetry: EPA 1664, EPA 9071; ASTM D4281; ISO 9377-1 |
| Applications | TOG (Total Oil and Grease) TPH (Total Petroleum Hydrocarbon) FOG (Fats, Oil, and Grease in wastewater) |
| Sample Volume | 200 mL water and 15 mL cyclohexane |
| Measurement Time | 5 min including extraction |
| Measurement Range | 0 – 3000 mg/L oil-in-water (Over 1000 mg/L: water:solvent = 250 mL:45 mL) |
| Repeatability (SD) | 0 – 50 mg/L: 0.25 mg/L (900:50 mL H2O:Solvent) 0 – 50 mg/L: 0.34 mg/L (200:15 mL H2O:Solvent) |
| Result Database | Over 100 000 detailed test reports stored |
| Remote Service | Remote service capability via Ethernet |
| Interfaces | Built-in PC with Ethernet, 4 x front and rear USB and RS232 interfaces; Wi-Fi via USB dongle Direct LIMS connectivity via LAN, output to printer or PC and export as CSV or PDF Optional input by keyboard, mouse, and barcode reader |
| Display | Industry-proven 8.4″ multilingual color touchscreen |
| Power Requirements | 85-264 V AC 47 – 63 Hz, max 150 W, Field-Application: 12 V DC |
| Dimensions | 15,5 x 26 x 28 cm (6.1 x 10.2 x 11 in) (W x D x H) |
| Weight | 7 kg (15 lb) |
Downloads
Download our brochure for more details
Videos
Configuration
ASTM D8193
| AYA-82-22237 | Mesh inlet filter 80µ |
| AYA-82-22567 | Outlet tube |
| AYA-82-22566 | Waste container |
| AYA-82-22086 | Power cable |
| AYA-82-22572 | Glass measuring cylinder 25 ml |
| AYA-82-22565 | Glass syringe 5 ml |
| AYA-82-22584 | Glass syringe 3 ml |
