ERAFLASH
Flash point tester with advanced Peltier Boost Technology (PBT).
Key Features:
- Small sample volume required
- Wide temperature range for various applications, ability of connecting to high temperature module (HTM) extension to increase the temperature range up to 420°C (788°F)
- Fast results and easy-to-use interface
- Portable and suitable for on-site testing
- Compliant with standards, safe and quick measurements
ASTM, D56, D3828, D93, D6450, D7094, DIN, 51 758, IP, 34, 170, ISO, 13736, 3680, 3679, 2719

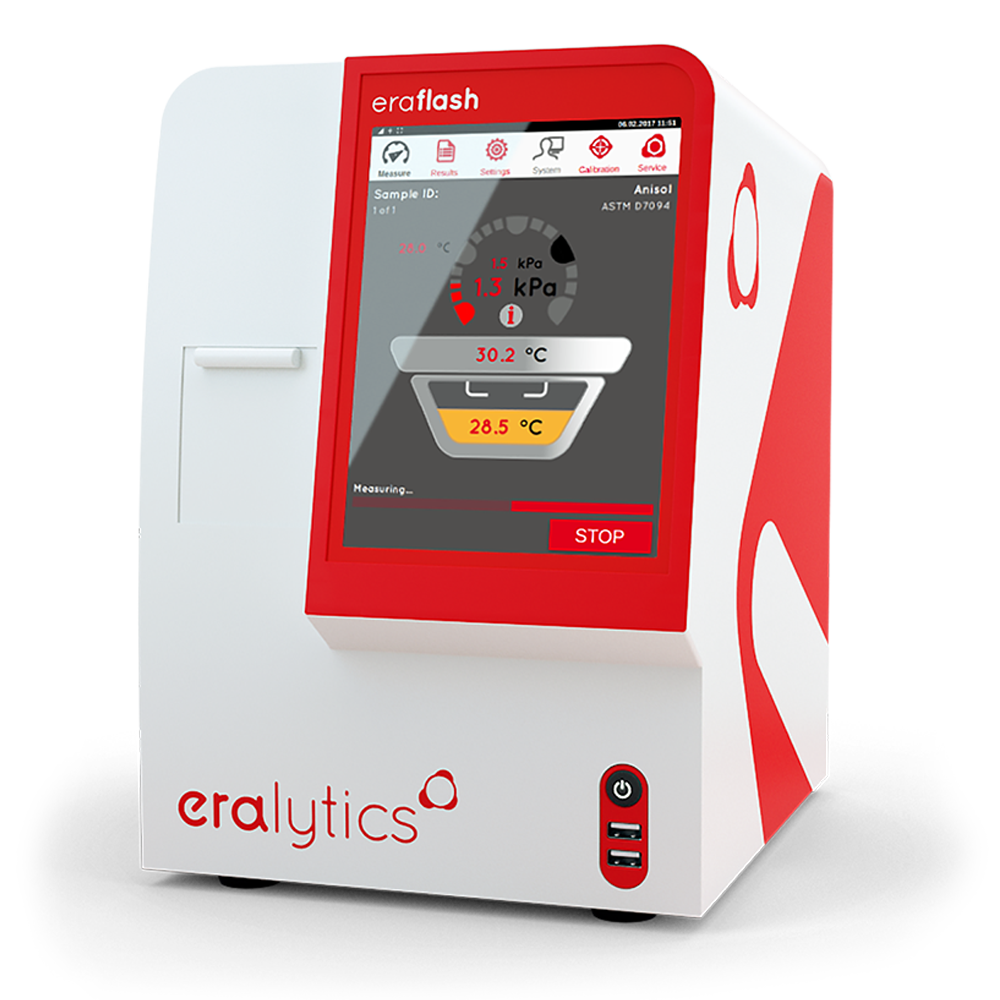

Introducing the ERAFLASH: Augmented ultra-wide range flash point tester maximized for safety
The ERAFLASH is a compact, safe, and reliable flash point tester covering an incredibly wide temperature range for a myriad of sample types ranging from fuels to fragrances and alcohols. With a continuously closed cup design paired with unparalleled thermoregulation using peltier elements, the ERAFLASH ensures maximized safety and efficiency.
With the distinct capability to incorporate both a high temperature and low temperature module, this singular analyzer can cover a temperature range from -25C to 420C with only 1-2mL of sample per test. To complete a test, the device produces an electric arc in a closed chamber to determine at which temperature the arc ignites the sample vapor, which is measured by the pressure change observed in ignition. Another feature of the ERAFLASH is the built-in unknown sample screen test which can quickly cover a wide range of temperatures to hone in on the specific flash point of unidentifiable samples or samples with unknown flash points.
This device is fully compliant with ASTM D6450 and D7094 with a diverse array of correlation methods making it the ideal solution for almost any flash point determination in both laboratory and on-the-go environments.
Applications of the ERAFLASH Include:
Safety characteristic determination
Transportation regulations compliance
Appropriate storage requirements
Aids in fire protection and investigation
Key Measuring Parameters:
Temperature Range: -25 °C to 420 °C (-13 °F to 788 °C)
Flash Point: Flash point corrected to sea level is displayed in units of temperature
Flash/No Flash: In correlation tests, Flash versus No Flash determinations
Pressure Change: Largest pressure difference during flash test
Temperature: Live, expected, and corrected temperatures
The ERAFLASH is backed by a comprehensive 1-year warranty, with an option to extend coverage for an additional year upon compliance with the manufacturer’s terms.
For more information or to request a quote, please click here.
For other related devices see the ERAVAP-DENS or ERAFLASH X
Features
ASTM
CompliantFully compliant to ASTM D6450 and D7094
Multilingual AccessibilityMultilingual Accessibility: Operation and output capabilities in the following languages: English, Spanish, Portuguese, Russian, Chinese (coming soon), French (coming soon)
Maximized ThermoregulationSingle analyzer high speed heating and cooling using patented Peltier Boost Technology
Minimized MaintenaceMinimized Maintenace: Enhanced electrode protection and self-cleaning ignition system to minimize cleaning and maintenance with patented contamination prevention technology
Considerable Waste ReductionConsiderable Waste Reduction: Only 1 mL (D6450) or 2 mL (D7094) of sample is required per test drastically reducing waste in more traditional testing methods
Straightforward OperationStraightforward Operation: An intuitive menu structure ensures seamless user navigation
Fully
PortableFully Portable: An accessible design that is lightweight and has an integrated carrying handle allows for suitable and smooth mobility
Enhanced Output EfficiencyEnhanced Output Efficiency: Direct ethernet and LIMS connectivity and in unit result transfer to reports and email
Augmented
EfficiencyFaster thermal manipulation paired with small sample sizes rapidly expedites sample testing
Streamlined Unknown ScreensFast scan test programs can cover a wide range of temperatures to hone in on unknown samples
Accessories
The following accessories are recommended for purchase in sequential order (see eStore):
| 1st Year: | No spare parts are required |
| 2nd Year: | D7094 Sample cup standard (aluminum, nickel plated, 2 ml) D6450 Sample cup standard (aluminum, nickel plated, 1 ml) Sample cup carrier Stirring magnet Disposable pipettes (5 pcs.) Brass eraser for cleaning of electrodes Cleaning tools for electrodes and oven surface (wet and dry sweeper) (5 pcs.) Ceramic ERAFLASH sample temperature sensor ERAFLASH oven temperature sensor |
| Remaining Parts: |
Specs
| Available Test Methods | ASTM D6450, ASTM D7094 | |
| Pre-Programmed Correlation Methods To | Pensky Martens Closed Cup: ASTM D93, EN ISO 2719, DIN 51758, IP 34, JIS K2265 TAG Closed Cup: ASTM D56 Abel Pensky Closed Cup: ISO 13736, IP 170 Small Scale Closed Cup and Flash / No Flash methods: EN ISO 3679, EN ISO 3680, ASTM D3828 |
|
| Fuel Specifications (ASTM D7094) | ASTM D396, ASTM D975, ASTM D2880, ASTM D3699, ASTM D7467 | |
| Speed Tests | Fast screening test programs for unknown samples | |
| PBT – Peltier Boost Technology™ | High speed heating & cooling -25 °C to 420 °C (-13 °F to 788 °C) with a single analyzer |
|
| Combustion GraphicsTM | Display of combustion characteristics for contamination analysis | |
| CPT – Contamination Prevention Technology™ | Advanced electrode protection and self-cleaning ignition system to minimize cleaning and maintenance | |
| Combustion Graphics™ | Display of combustion characteristics for contamination analysis | |
| QuickCal™ | Dry Block Calibration with eralytics unique directly attached Temperature Calibration Block (EF01-TCB) | |
| Fuel Dilution Program | Automatic fuel dilution measurement for the analysis of used engine oils | |
| Temperature Range | 0 °C to 200 °C (32 °F to 390 °F) stand alone. No external cooling is required. Down to -25 °C (-13 °F) oven temperature with external cooling Up to 420 °C (788 °F) with optional High Temperature Module (EF01-HTM) |
|
| Temperature Stability | 0.1 °C (0.2 °F) | |
| Interfaces | Built-in PC with Ethernet, USB and RS232 interfaces Direct LIMS connectivity via LAN and output to printer or PC |
|
| Sample Troughput | Up to 12 samples per hour | |
| Sample Volume | 1 mL (ASTM D6450), 2 mL (ASTM D7094) | |
| Sample Cups | Nickle plated aluminium, stainless steel cups available upon request | |
| Display | Industry proven 8″ color touchscreen | |
| Languages | English, German, French, Spanish, Russian, Chinese Additional langages available upon request |
|
| Interfaces | Built-in PC with Ethernet, USB and RS232 interfaces Direct LIMS connectivity and output to printer or PC Optional input by external keyboard, mouse and barcode / QR-code reader |
|
| Remote Control | Remote service capability via Ethernet interface | |
| PC Software | ERASOFT RCS – remote control Windows® software for multi-instrument remote control, convenient data transfer andresult analysis | |
| Result Database | Over 100 000 detailed test reports stored in internal memory | |
| Operating Conditions | Temperature range 10°C to 40°C Humidity up to 90% RH, non condensing |
|
| Power Requirements | Auto-switching 85-264 V AC, 47-63 Hz, max. 150 W (multi-voltage power supply) Field application: 12 V DC (vehicle battery) adapter available |
|
| Dimensions / Weight | 22 22 x 32 x 28 cm (8.7 x 12.6 x 11 in) / 8 kg (17.6 lb) |
Downloads
Download our brochure for more details
Videos
Configuration
ASTM D7094
| AYA-82-22040 | D7094 Sample cup standard (aluminum, nickel plated, 2 ml) |
| AYA-82-22044 | Sample cup carrier |
| AYA-82-22045 | Stirring magnet |
| AYA-82-22046 | Disposable pipettes (5 pcs.) |
| AYA-82-22047 | Brass eraser |
| AYA-82-22056 | Cleaning tools for electrodes and oven surface |
| AYA-82-22086 | Power cable |
ASTM D6450
| AYA-82-22041 | D6450 Sample cup standard (aluminum, nickel plated, 1 ml) |
| AYA-82-22044 | Sample cup carrier |
| AYA-82-22045 | Stirring magnet |
| AYA-82-22046 | Disposable pipettes |
| AYA-82-22047 | Brass eraser |
| AYA-82-22056 | Cleaning tools for electrodes and oven surface |
| AYA-82-22086 | Power cable |
