ERASPEC -mid-FTIR

Versatile fuel analyzer providing comprehensive fuel composition and properties.

Key Features:

Utilizes mid-FTIR spectroscopy for detailed analysis of different fuel types (gasoline, diesel, jet fuel, and more), able to measure NIR range with an enhanced feature
Measures Octane number, RON, MON, ethanol, biodiesel content, and more
Rapid, on-site results in less than a minute
Portable and robust for field deployment
Complies with different standards

Methods:
ASTM, D4815, D976, D1840, D5769, D6379, D7153, D7371, D56, D86, D323, D445, D613, D1319, D1322, D1655, D2386, D2699, D2700, D3828, D4052, D4814, D5191, D5845, D6277, D6378, EN, 238, 13016-1-2, 116, ISO, 5164, 3104, ISO5165, ISO5163, 3405

[request_quote_button]

Description
Features
Accessories
Specs
Downloads
Videos
Configuration
Tags
Related
eStore
Reviews (0)

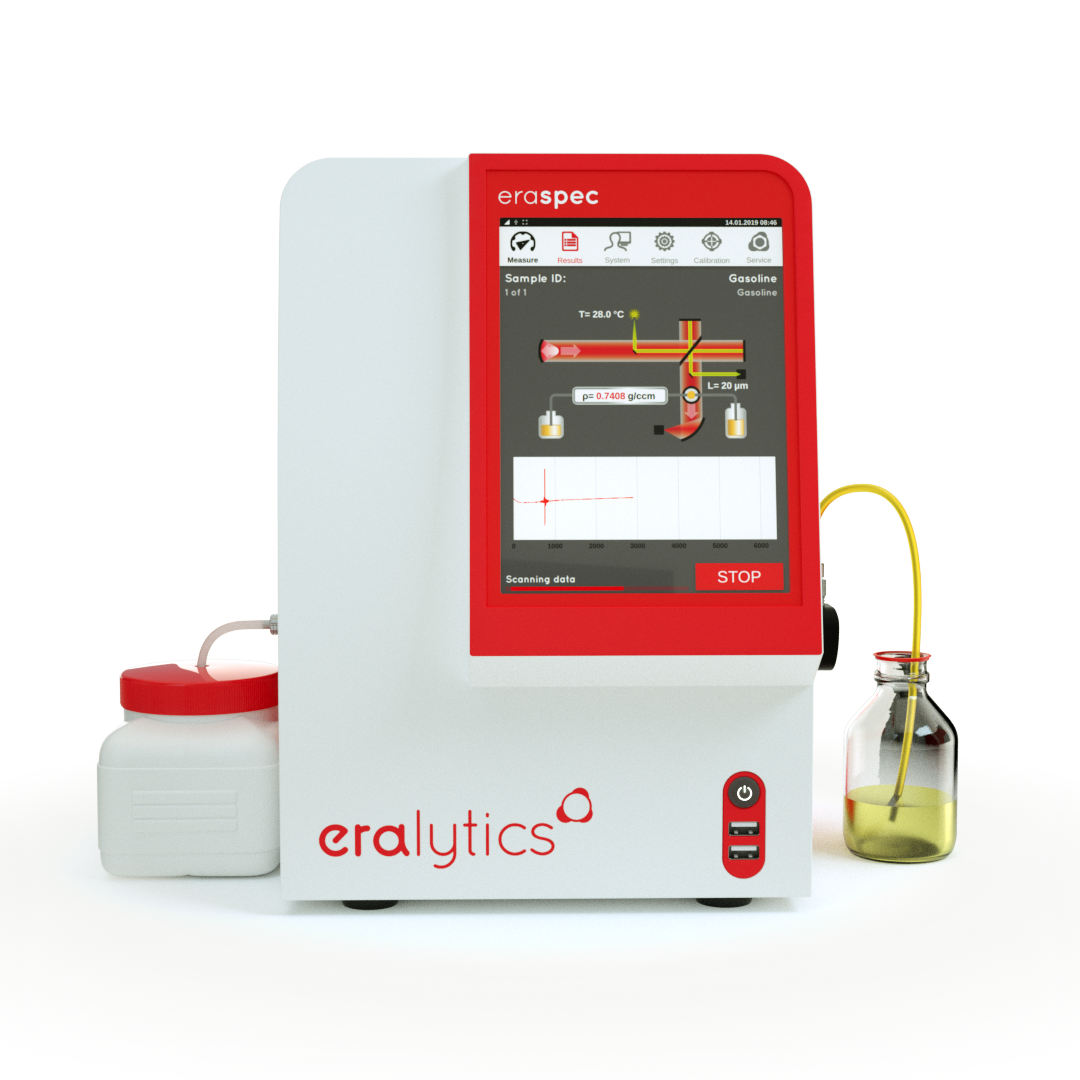

Introducing the ERASPEC: High-Precision Fuel Analysis with FTIR Technology

The ERASPEC is a cutting-edge mid-FTIR spectrometer engineered to deliver fast, precise fuel analysis, crucial for maintaining fuel quality, ensuring regulatory compliance, and supporting advanced research. Leveraging its patented interferometer, the ERASPEC measures the complete infrared spectrum of various fuels, such as gasoline, diesel, and jet fuel, within less than 60 seconds. This device stands out due to its ability to automatically derive critical fuel properties, including Octane and Cetane numbers, distillation points, and the concentration of fuel components like ethanol and benzene, oxidation, aromatics, olefins and many more parameters, all from a minimal 10 ml sample.

Designed with versatility and ease of use in mind, the ERASPEC supports a range of analytical modules, making it adaptable for many standards. The device's fully automated operation requires no warm-up time, sample preparation, or manual calibration, ensuring quick and highly accurate results with minimal operator intervention. The robust, portable design of the ERASPEC, coupled with its intuitive touchscreen interface, makes it an ideal choice for both laboratory and field applications, even in challenging environments like oil platforms.

The ERASPEC’s comprehensive data management capabilities allow for seamless integration into existing workflows, with options for data storage in the equipment, USB transfer, RS232 interfaces, direct LIMS connectivity via LAN, and direct report printing. Its compact form factor 29 x 35 x 34 cm (11.4 x 13.8 x 13.4 in) and light weight 9.7 kg (21.4 lb) make it highly portable, ensuring that reliable fuel analysis is always at hand, whether in a fixed lab setting or out in the field. This device is essential for industries requiring high-precision fuel testing and is backed by a standard 1-year warranty, extendable to 2 years under manufacturer’s terms.

Applications of the ERASPEC Include:
Monitoring fuel quality in refining and blending operations
Compliance testing in fuel production and distribution
Highly accurate on-site fuel analysis in mobile and field settings
Supporting R&D in fuel composition and properties

Key Measuring Parameters:
Octane Number: Accurate measurement of gasoline quality
Cetane Number: Critical for diesel fuel quality assessment
Complete Fuel Analysis: Various fuel characteristics like aromatics, oxidation, olefins and many others.

The ERASPEC comes with a comprehensive 1-year warranty, with an option to extend coverage for an additional year upon agreement to the manufacturer’s terms.
For more information or to request a quote, please click here.
For other related FTIR devices see the ERASPEC OIL or ERAJET FAME.

Features

Accessories

The following accessories are recommended for purchase in sequential order (see eStore):

1st Year:	No spare parts are required
2nd Year:	Sampling tube with Luer connector Metal filter 16 µ (5 pcs) Protective film for touch display (5 pcs) Stylus for data entry via touch display
Remaining Parts:

Specs

Available Test Methods	ASTM D5845, ASTM D6277, ASTM D7777, ASTM D7806, EN 238, EN 14078, ISO 15212, IP 559
Correlation to	ASTM D86, ASTM D323, ASTM D613, ASTM D976, ASTM D2699, ASTM D2700, ASTM D4814, ASTM D5191, ASTM D6378, ISO 3405, ISO 5163, ISO 5164, ISO 5165, EN 13016
Spectrometer type	Patented mid-FTIR spectrometer Laser and temperature controlled design
Measurement Cell	20 µm and / or 100 µm path length cell, reference cell Optimized dual or triple position cell design for gasoline, diesel, and jet fuel measurements
Calibration	Factory calibrated with a matrix of several hundred international fuels
Spectral Libraries	Easy addition, expansion and exchange of individual fuel libraries On the fly recalculation of libraries without delaying any measurements
Available Analyzer Modules	– Gasoline module (ASTM D5845, ASTM D6277, and several correlation methods) – MMT / CMT module (determination of MMT, CMT and Manganese) – Contamination gasoline module – Benzene (determination according to EN 238) – Synthetic fuel module (for gasoline) – Diesel module (with several preprogrammed correlation methods) – 2EHN Cetan improver module – low FAME module (for determination of FAME in diesel or jet fuel) – EU FAME module (for determination of FAME according to EN 14078) – Ethanol fuel module (ASTM D4806) – Methanol fuel module – Automatic fuel recognition module – Jet fuel module (with several preprogrammed correlation methods)
Density Meter	0 – 3 gcm-3 (r = 0.0005 gcm-3) Oscillating U-tube cell
Measuring Time	60 seconds, including sample introduction, measurement and calculations Warm-up time: 30 seconds after booting the instrument
Sample introduction	Directly from the sample container by an integrated pump
Sample Volume	10 mL
Cleaning	Automatic rinsing with next sample or solvent Flow cell protected by an inegrated filter
Display of Fuel Spectra	Direct comparison of spectra on the color touchscreen Overlay of fuel spectra with spectra of pure substances
Display	Industry proven 8″ color touchscreen
Languages	English, German, French, Spanish, Russian, Chinese Additional langages available upon request
Interfaces	Built-in PC with Ethernet, USB, and RS232 interfaces Direct LIMS connectivity via LAN and output to printer or PC Optional input by external keyboard, mouse, and barcode scanner
Remote Control	Remote service capability via Ethernet interface
PC Software	ERASOFT RCS – remote control Windows® software for multi-instrument remote control, convenient data transfer, viewing spectra and result analysis
Result database	50 000+ detailed test reports and spectra storable in internal memory
Alarm Tracking	All alarm messages are stored the the database together with the results

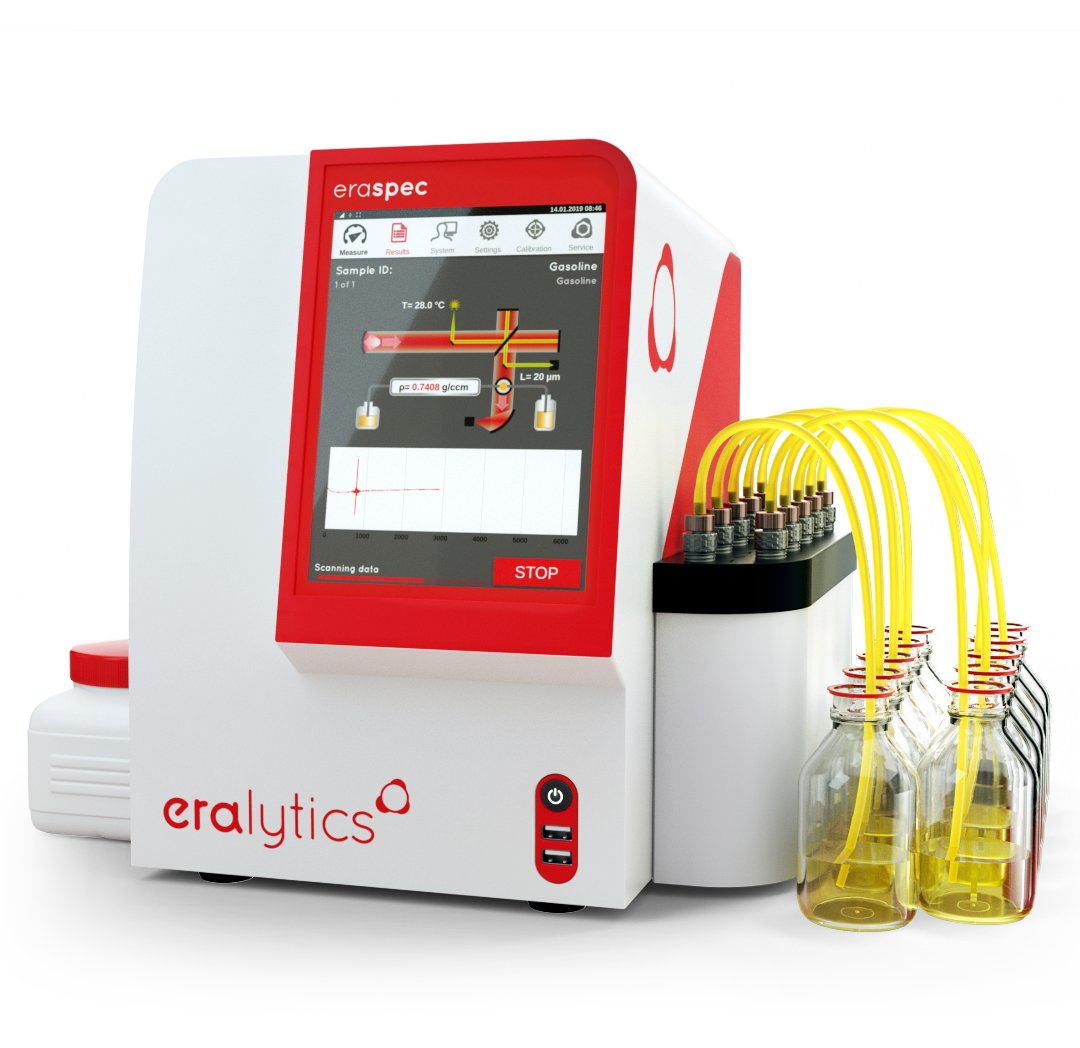

Auto Sampler	Optional 10-position auto-sampler – directly attached
Operating Conditions	Temperature range 10°C to 40°C Humidity up to 90% RH, non condensing
Power Requirements	Auto-switching 85-264 V AC, 47-63 Hz, max. 150 W (multi-voltage power supply) Field application: 12 V DC (vehicle battery) adapter available
Dimensions / Weight	29 x 35 x 34 cm (11.4 x 13.8 x 13.4 in) / 9.7 kg (21.4 lb)

Downloads

Download our brochure for more details

Videos

Configuration

ASTM D8193

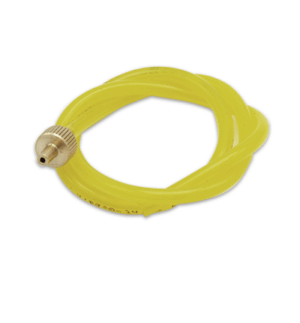

AYA-82-22081	Sampling tube with Luer connector
AYA-83-22099	Mesh inlet filter 15µ
AYA-82-22084	Outlet tube
AYA-82-22085	Waste container
AYA-82-22086	Power cable
