CuDDI – Copper Digital Detection Imaging
Specialized and automated copper corrosion detection system.
Key Features:
-
- High-resolution detection of copper corrosion rate.
- Fast and accurate results.
- User-friendly interface.
- Portable and durable for field applications.
- Compliant with different standards.
ASTM, D4814, D130, D1838, D4048, D849, D7667, D7671, DIN, 51 759, EN, 2160, 6251, FTM, 791-5325, IP, 112, 154, 227, 411, 611, ISO, 22160, 2160
Our patented Copper Digital Detection Imaging device (CuDDI) is changing the refinery world by eliminating a vast majority of human error and bias when reading results. Through a 4-step automated vision algorithm and classification process, CuDDI precisely identifies the corrosivity levels adhering to ASTM D130 and D1838 test methods. Its unique vision algorithm and light box records, calculates and displays accurate corrosivity ratings in a matter of seconds. A high-resolution camera with sophisticated optics provides higher precision machining and motors for the rotation of the copper strip. Using a corrosion detection range of 1a through 4C, outcomes are digitally recorded and seamlessly integrate with LIMS software. Prior to CuDDI, no accurate standardized procedures were in place. The innovation and results CuDDi brings to refining are the new standard for copper detection. Your testing. Refined.
The full CuDDI copper corrosion test method, features and specs can be viewed in the product brochure.
PATENTED
360 Perspective view– Our automated CuDDI provides auto recognition of Sides A & B.Our auto Rotation of Strip for full 360 Recording that avaliable to be downloaded.
USB outlet– All VISAYA analyzers are equipped with 3+ outlets for direct LIMS Connectivity, USB, Ethernet and HDMI Outputs
Fully Unattended– A high resolution camera with sophisticated optics provides higher precision machining and motors for the rotation and analysis of the copper strips. Copper digital detection imaging is a simplified process requiring minimal steps that effect maximum efficiency allowing you to leave unattended.
Fully Automated- . Our CuDDI dentifies exact levels of corrosiveness present in petroleum products through a 4-step automated vision algorithm and classifi cation process, eliminating operator bias. Results are digitally recorded and are seamlessly integrated with LIMS software.
Features
CuDDI’s improves results over current test sample handling and errors, enables Single-Hand Loading via Copper Strip Slide Holder. Our CuDDI eliminates Fingerprints and Unwanted Markings on Strips.
Our automated CuDDI provides auto recognition of Sides A & B.Our auto Rotation of Strip for full 360 Recording that avaliable to be downloaded.
All VISAYA analyzers are equipped with 3+ outlets for direct LIMS Connectivity, USB, Ethernet and HDMI Outputs
A high resolution camera with sophisticated optics provides higher precision machining and motors for the rotation and analysis of the copper strips. Copper digital detection imaging is a simplified process requiring minimal steps that effect maximum efficiency allowing you to leave unattended.
Our CuDDI dentifies exact levels of corrosiveness present in petroleum products through a 4-step automated vision algorithm and classifi cation process, eliminating operator bias. Results are digitally recorded and are seamlessly integrated with LIMS software.
CuDDI is fully compliant with ASTM D130, D1838, providing both standard method and refined methodology.

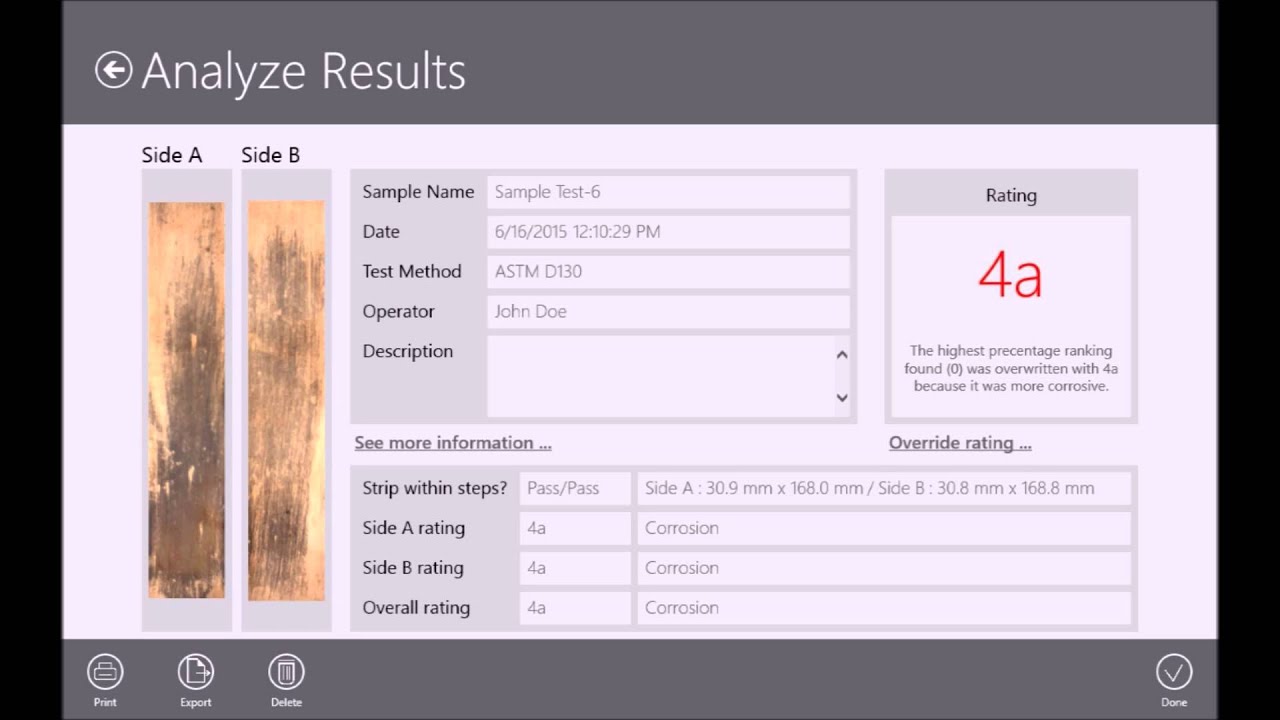

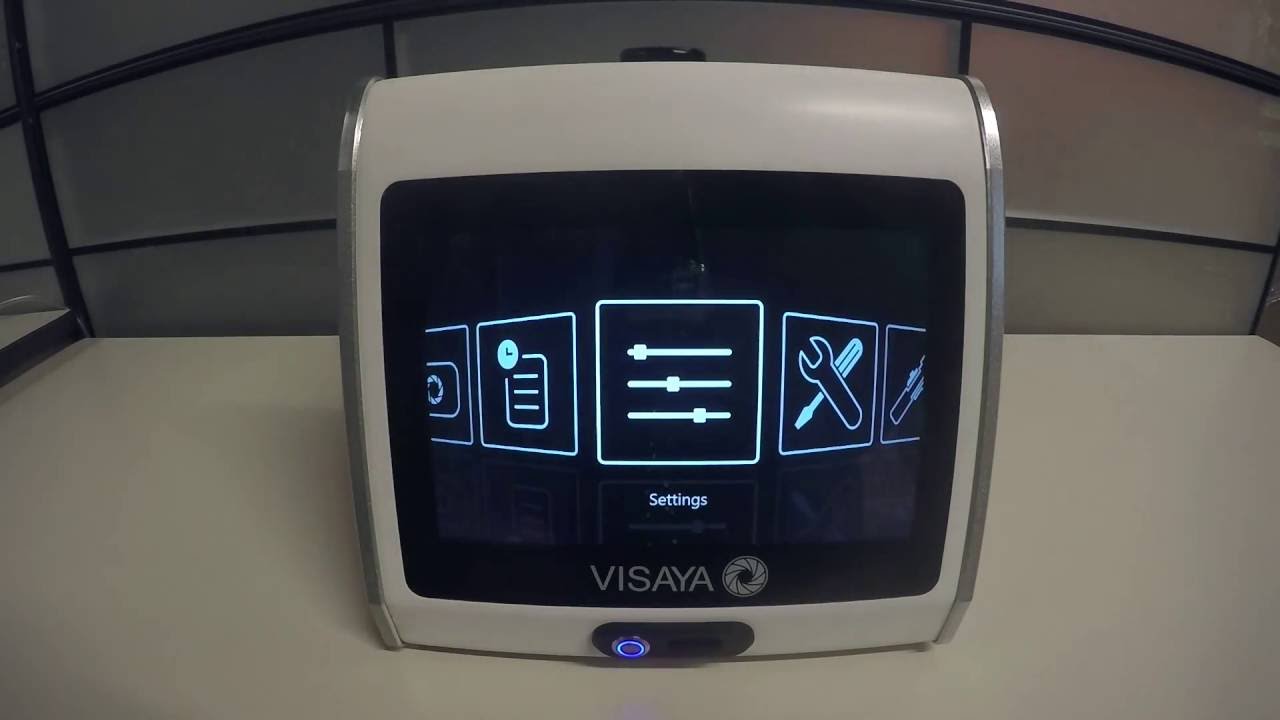

CuDDi’s easy-to-use touch screen driven software provides simplified operation and results access for end users at all levels.
CuDDi’s 1-2-3 button operation is paired with digital outcome and image logging for an easy interface.
A small footprint of 400x350x530mm at 15 Kg. (15x14x21)
CuDDi has multilingual capabilities for display and print-out formats in the following languages: English, Spanish,Portuguese, Russian, Chinese (coming soon), French (coming soon)
Accessories
The following accessories are recommended for purchase in sequential order (see eStore):
| 1st Year: | Copper Strip – Extra Thick, Longer Lasting Copper Strip – Extra Thick, Longer Lasting /with Hanging Hole Polishing VISE – Holds 6 Strips Test Tubes, 25-mm x 150-mm, Dozen Viewing Test Tube, Each Silicon Carbide Sheets, 150-Grit, 50 Pack Silicon Carbide Sheets, 240-Grit, 50 Pack Silicon Carbide Grains/Powder, 150 mesh, 450 grams ASTM Color Standard (Method Requires Two) Test Pressure Vessels, For use with Volitale Samples Test Pressure Vessels, for LPG Samples, Two Valves |
| 2nd Year: | Replacement NFX Handle (Integrated Motor) CuDDI calibration standard. Used as daily QC/Validation and calibration of camera & motor position. Supplied in storage case with certificate valid for one year |
| Remaining Parts: | Solid Block Bath for 4 Test Tubes or 4 Pressure Vessels |
Specs
| Available Test Methods | ASTM D130, D1838 |
| Corrosion Detection Range | 1a, to 4C |
| Display Units | Color, ASTM Rating and Strip Size |
| Detection Method | Patent Pending CMOS Digital Detection |
| Precision | +/- 0.25% of Raw Reading |
| Optical Design | Patent Pending Optical Arrangement |
| Light Source | LED, 7,000K |
| Measuring Time | < 30 seconds per side (90 seconds max) |
| Calibration | Vision Calibration with Standard |
| Display | 10.1” Projective Capacitance Touch (Multi Touch) |
| Interfaces | Ethernet x2, USB 3.0 x1, USB 2.0 x4, HDMI, VGA, USB Printer, USB Mouse and Keyboard |
| Memory / Storage | 32 GB SSD Storage |
| Temperature Range | 10° to 35° C |
| Humidity | Up to 85% Non Condensing |
| Power | Auto-switching 90 ~ 264VAC, 47 ~ 63Hz, 280 Watt Power Supply |
| Space Requirements | 80 mm (3”) on Sides and Back |
| Dimension | 350x300x270mm (14x12x11”) |
| Gross Dimensions & Weight | Weight 10 Kg. (22 lbs.) 400x350x530mm, 15 Kg. (15x14x21” 33lbs.) |
Videos
Downloads
Download our brochure for more details
Application Notes:
Configuration
ASTM D130
| AYA-52-50496 | Polishing VISE – Holds 6 Strips |
| AYA-50-11239 | Aluminum Block Bath for 4 Test Tubes or 4 Pressure Vessels |
| AYA-52-05793 | Copper Strip – Extra Thick, Longer Lasting |
| AYA-51-05789 | Viewing Test Tube |
| AYA-52-05794 | Test Pressure Vessels, For use with Volitale Samples, |
| AYA-52-05798 | Silicon Carbide Sheets, 150-Grit |
| AYA-52-05797 | Silicon Carbide Sheets, 240-Grit |
| AYA-52-50456 | Silicon Carbide Grains/Powder, 150 mesh |
| AYA-51-05788 | Test Tubes, 25-mm x 150-mm |
| AYA-55-05791 | ASTM Color Standard (Method Requires Two) |
ASTM D1838
| AYA-52-50496 | Polishing VISE – Holds 6 Strips |
| AYA-50-11239 | Aluminum Block Bath for 4 Test Tubes or 4 Pressure Vessels |
| AYA-52-50072 | Copper Strip – Extra Thick, Longer Lasting /with Hanging Hole |
| AYA-51-05789 | Viewing Test Tube |
| AYA-52-50061 | Test Pressure Vessels, for LPG Samples |
| AYA-52-05798 | Silicon Carbide Sheets, 150-Grit |
| AYA-52-05797 | Silicon Carbide Sheets, 240-Grit |
| AYA-52-50456 | Silicon Carbide Grains/Powder, 150 mesh |
| AYA-51-05788 | Test Tubes, 25-mm x 150-mm |
| AYA-55-05791 | ASTM Color Standard (Method Requires Two) |
