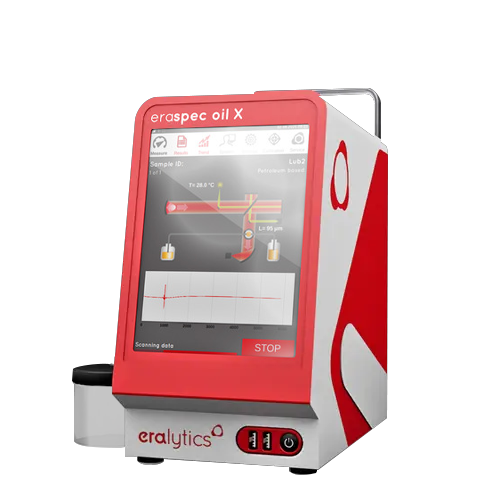

ERASPEC OIL X

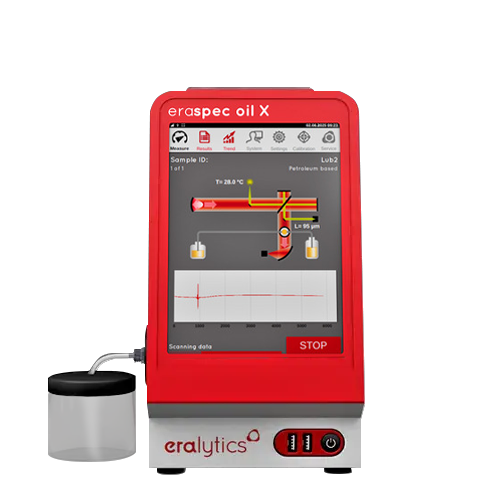

ERASPEC OIL X - Image 2

ERASPEC OIL X

The dedicated FTIR for lube oil analysis.

Methods:ASTM7806D7214D7806D7844D8340D5845D6277DIN51 45251 453EN14078238

Segments:

  • Advanced Oil Analysis
  • Central Laboratories
  • Power Generation
  • Heavy Industry
  • Reliability Engineering
Login or Register to buy
Key Features:
  • Rugged and portable: Its robust aluminium housing makes it perfect for mobile labs or on-site testing.
  • Precise and proven: Compliant with ASTM D7214, D7412, D7415, D7418, D7624, D7806, D7844, D8340, E2412.
  • Smart and efficient: Automated reference measurements, factory calibration and GC-level accuracy - all without the associated cost or complexity.
  • Specialized fuel modules are available.

eStore

You May Also Like

Tags

Categories:

Tags:

Features

features__astm compliantERASPEC OIL is fully compliant with ASTM D2896, ASTM D445, ASTM D664, ASTM D7412, ASTM D7414, ASTM D7415, ASTM D7418, ASTM D7624, ASTM E2412, providing both standard method and refined methodology.
features__simple operatonAll eralytics analyzers use an intuitive menu structure that is easy to navigate. Samples need no prior preparation and measurements are done fully automated.
A direct out-of-the-box connection to LIMS (Laboratory Information Management System) is established with a standard Ethernet cable.No extra software or PC are necessary.
features__footprintThe small footprint of the eralytics instruments makes them the first choice for use in the lab and on-site.
features__portable​The Eralytics units are all lightweight and built with an integrated carrying handle, they are versatile and ideally suited for mobile applications as well.

features__touch screenAll Eralytics analyzer results are displayed immediately after the test on their large and user-friendly color touch screen.

Downloads

Download our brochure for more details

The dedicated FTIR for lube oil analysis.

The eraspec oil X is the world’s smallest lab-grade FTIR lube oil analyzer. At the push of a button eraspec oil X delivers a detailed fingerprint of lubricating oils using only 2 mL of sample. Thanks to its rugged and lightweight design, eraspec oil X is the perfect tool for ultra-fast measurements in laboratories, inside mobile labs or even directly in the field. All this is available with outstanding measurement accuracy.

Accessories

The following accessories are recommended for purchase in sequential order (see eStore):

1st Year: No spare parts are required
2nd Year: Sampling tube with Luer connector
Disposable sampling tube with Luer connector (100 pcs)
Disposable sampling tube with Luer connector (25 pcs)
Mesh inlet filter 80µ (5 pcs)
Teflon o-ring for EV01-A002a Mesh inlet filter 80µ
Protective film for touch display (5 pcs)
Stylus for data entry via touch display
Remaining Parts:

Specs

Available Test Methods   ASTM E2412, D2668, D7214, D7412, D7414, D7415, D7418, D7624, D7844, D8340, DIN 51452, DIN 51453, IEC 60590, IEC 60666, JOAP
Spectrometer Type   Patented mid-FTIR interferometer
Laser and temperature controlled design
Measurement Cell   100 μm path length sample cell, additional built-in reference cell
Optimized dual position cell design for automated reference measurement without solvent
Calibration   Factory calibration for e.g. soot, water, glycol, antioxidants
Measurement Principle   Direct trending: calculation based on the absorption spectrum of the sample at specific wavelengths
Spectral subtraction: fresh oil spectrum used as reference for highest performance and lowest LODs
Measurement Time   60 seconds; warm-up time: 30 seconds

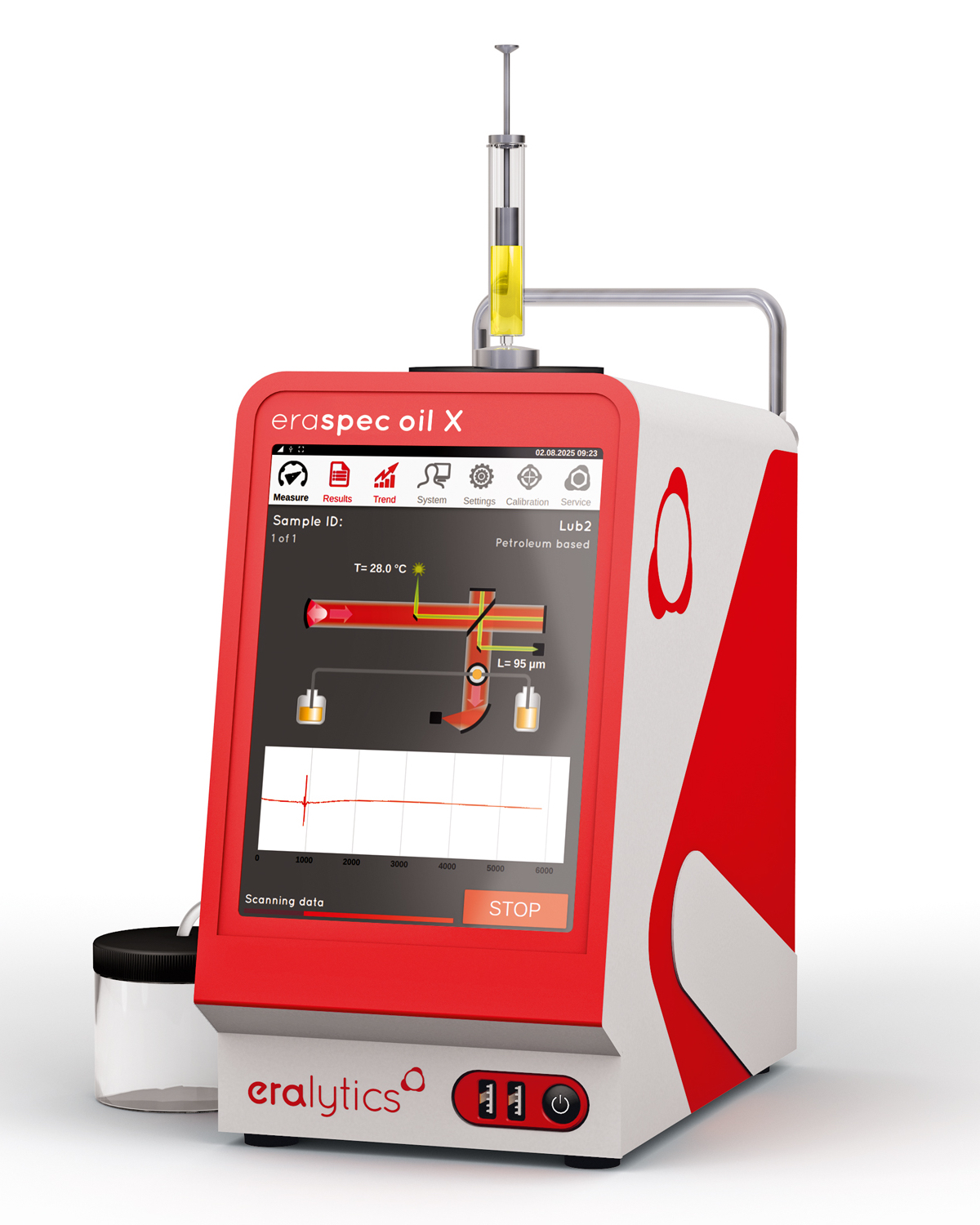

Filling Mode   Syringe filling
Sample Viscosity   Up to 1 000 mm²/s at 20 °C
Sample Volume   Minimum 4 mL with sample displacement; minimum 2 mL with intermediate cleaning
Cleaning   Rinsing with next sample or solvent
Integrated and replaceable filter to prevent blocking of measurement cell
Interfaces   Built-in PC with Ethernet, 5x USB-A, 1x USB-B, and RS232 interfaces; Wifi via USB dongle
Direct LIMS connectivity via LAN and output to printer or PC, and export as CSV or PDF
Optional input by keyboard, mouse and barcode reader
Display   Industry proven 8.4″ multilingual color touchscreen
Remote Control   Remote service capability via ethernet interface
PC Software   erasoft RCS – remote control Windows® software for multi-instrument remote control,
convenient data transfer, viewing spectra and result analysis
erasoft OCM software – supports operators in the management, operation and predictive maintenance of technical equipment with a focus on oil condition monitoring
Result Database   Approx. 30 000 detailed test reports and spectra stored in the internal memory
Alarm Tracking   All alarm messages are stored in the database together with the results
Power Requirements   85 – 264 V AC, 47 – 63 Hz, max. 150 W
Field application: 12 V DC vehicle battery, adapter available
Operating Conditions   5 °C – 45 °C up to 90 % rel. humidity (non-condensing)
Dimensions / Weight (W x D x H)   18.0 x 28.6 x 29.3 cm (7.1 x 11.2 x 11.5 in) / 7 kg (15.4 lb)

Configuration

ERASPEC Oil

AYA-82-22074 Sampling tube with Luer connector
AYA-82-22248 Disposable sampling tube with Luer connector
AYA-82-22237 Mesh inlet filter 80µ (5 pcs, 1 pc inside Sample inlet on instrument)
AYA-82-22084 Outlet tube
AYA-82-22085 Waste container
AYA-82-22086 Power cable
